MIC94355-FYMT-T5 - Microchip

Description: Linear Voltage Regulator IC 1 Output 500mA 6-TDFN (1.6x1.6)

Download MIC94355-FYMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

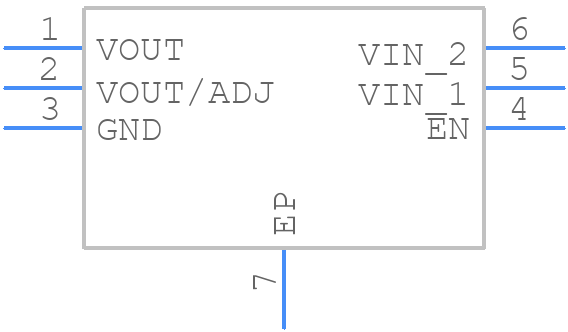

Symbol
MIC94355-FYMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94355-FYMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 6 PIN
click to zoom
3D Models
MIC94355-FYMT-T5 - Microchip - 3D model - Small Outline No-lead - DFN 6 PIN
click to zoom

MIC94355-FYMT-T5 Details

  • Manufacturer Part Number:

    MIC94355-FYMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Regulation-Max:

    0.015%

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.545 V

  • Output Voltage1-Min:

    1.455 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    3%

  • Width:

    1.6 mm

MIC94355-FYMT-T5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The MIC94355-FYMT-T5 should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the device.
  • For optimal performance, it is recommended to use low-ESR ceramic capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be placed as close as possible to the device pins to minimize parasitic inductance.
  • To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage, output voltage, and enable pin voltage. Ensure that the input voltage is within the recommended range and the enable pin is properly biased. Also, check for any short circuits or overload conditions.
  • The recommended thermal design considerations for the MIC94355-FYMT-T5 include providing a solid ground plane, using thermal vias, and placing the device near a thermal pad or heat sink. Additionally, ensure good airflow and thermal management around the device.
