MIC94355-SYMT-T5 - Microchip

Description: IC REG LINEAR 3.3V 500MA 6TDFN

Download MIC94355-SYMT-T5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

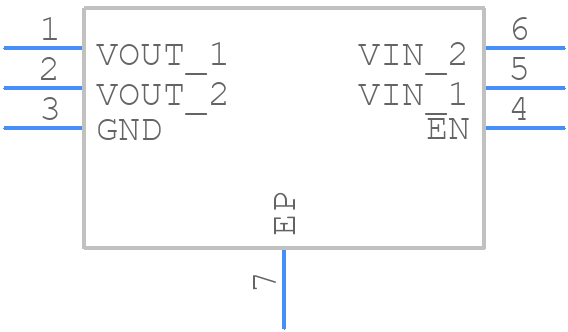

MIC94355-SYMT-T5 - Microchip - PCB symbol
click to zoom
PCB Footprints
MIC94355-SYMT-T5 - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead 1.6mm x 1.6 UDFN [HKA
click to zoom
3D Models
MIC94355-SYMT-T5 - Microchip - 3D model - Small Outline No-lead - 6-Lead 1.6mm x 1.6 UDFN [HKA
click to zoom

MIC94355-SYMT-T5 Details

  • Manufacturer Part Number:

    MIC94355-SYMT-T5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    6

  • Manufacturer Package Code:

    UDFN-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Regulation-Max:

    0.033%

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    3%

  • Width:

    1.6 mm
