MICRF302YML-TR - Microchip

Description: Encoders, Decoders, Multiplexers & Demultiplexers

Download MICRF302YML-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

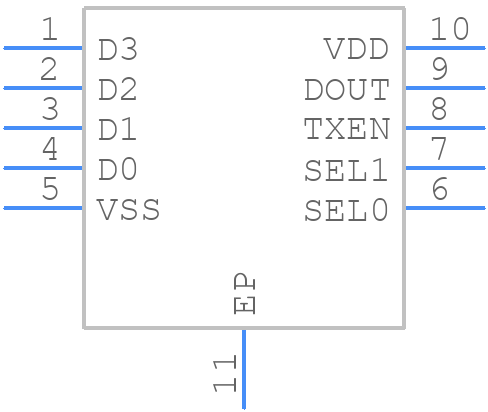

MICRF302YML-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
MICRF302YML-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-pin MLF
click to zoom
3D Models
MICRF302YML-TR - Microchip - 3D model - Small Outline No-lead - 10-pin MLF
click to zoom

MICRF302YML-TR Details

  • Manufacturer Part Number:

    MICRF302YML-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2.50 X 2.50 MM, GREEN, MLF-12

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    10.31

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.5 mm

MICRF302YML-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm impedance matching to minimize signal reflections.
  • Implement a robust error correction mechanism, such as CRC or checksum, and use a reliable modulation scheme like FSK or OOK. Additionally, consider using a spread spectrum technique like frequency hopping or direct sequence spread spectrum to minimize interference.
  • The maximum transmission distance depends on the environment, antenna design, and transmission power. However, with a suitable antenna and transmission power, distances up to 100 meters can be achieved in open spaces, and up to 10-20 meters in indoor environments.
  • Use the device's built-in power-saving features, such as the sleep mode, and optimize the transmission protocol to minimize the duty cycle. Additionally, consider using a low-power microcontroller and optimizing the system's overall power budget.
  • Yes, the MICRF302YML-TR is suitable for wireless sensor networks due to its low power consumption, small form factor, and reliable wireless communication capabilities. It can be used in applications such as industrial automation, smart home devices, and IoT devices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MICRF302YML-TR Overview

Use the download button to access the MICRF302YML-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRF, or try a keyword search, such as Other Signal Circuits
