MICROFC-30035-SMT-TR1 - onsemi

Description: Bias voltage of <30 V; Ultra-low dark count rates of 30 kHz/mm2; 1 mm, 3 mm, and 6 mm sensor sizes; >40% PDE at 420 nm, and extended sensitivity to 300 nm for improved UV sensitivity; Exceptional breakdown voltage uniformity of ±250 mV over all C-Series products; Temperature stability of 21.5 mV/°C; Ultra-fast rise times of 300 ps with 600 ps pulse width from a unique ‘fast output’ terminal

Download MICROFC-30035-SMT-TR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

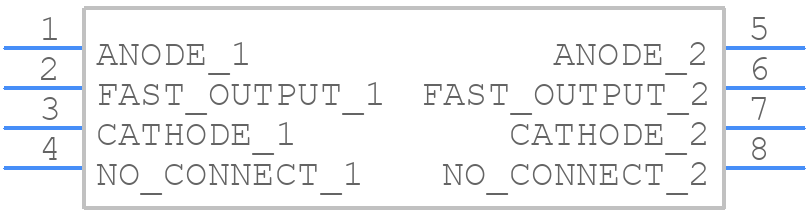

MICROFC-30035-SMT-TR1 - onsemi - PCB symbol
click to zoom
PCB Footprints
MICROFC-30035-SMT-TR1 - onsemi PCB footprint - Other - Other - CWDFN4 4x4, 1.96P CASE 512AF
click to zoom
3D Models
MICROFC-30035-SMT-TR1 - onsemi - 3D model - Other - CWDFN4 4x4, 1.96P CASE 512AF
click to zoom

MICROFC-30035-SMT-TR1 Details

  • Manufacturer Part Number:

    MICROFC-30035-SMT-TR1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CWDFN-4

  • Manufacturer Package Code:

    512AF

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.4

  • Additional Feature:

    LOW NOISE

  • Configuration:

    COMPLEX

  • Dark Current-Max:

    443 nA

  • Infrared Range:

    NO

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    AVALANCHE PHOTODIODE

  • Packing Method:

    TR

  • Peak Wavelength:

    420 nm

  • Reverse Breakdown Voltage-Min:

    24.2 V

  • Semiconductor Material:

    Silicon

  • Shape:

    SQUARE

  • Size:

    3 mm

  • Surface Mount:

    YES

MICROFC-30035-SMT-TR1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MICROFC-30035-SMT-TR1 can be found in the onsemi application note AND8323/D, which provides guidelines for PCB layout and assembly.
  • To ensure reliability in high-temperature applications, follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to reduce the junction temperature.
  • The maximum allowable voltage for the MICROFC-30035-SMT-TR1 is 35V, as specified in the datasheet. Exceeding this voltage may result in device damage or failure.
  • Yes, the MICROFC-30035-SMT-TR1 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the PCB layout and selecting components.
  • To ensure ESD protection for the MICROFC-30035-SMT-TR1, follow proper handling and storage procedures, and consider implementing ESD protection circuits or devices in the system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MICROFC-30035-SMT-TR1 Overview

Use the download button to access the MICROFC-30035-SMT-TR1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MICRO, or try a keyword search, such as Photo Diodes
