Onsemi provides a recommended PCB layout and thermal management guide in their application note AND9173/D. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
The input capacitor selection depends on the input voltage, current, and frequency. Onsemi recommends using a low-ESR capacitor with a value between 10uF to 22uF. A X5R or X7R dielectric capacitor is suitable for this application. Refer to the application note AND9173/D for more details.
The MICROFJ-40035-TSV-TR1 has an operating temperature range of -40°C to 150°C. However, the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Yes, the MICROFJ-40035-TSV-TR1 is qualified for automotive and high-reliability applications. It meets the AEC-Q101 qualification standard and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific application requirements.
Onsemi provides a troubleshooting guide in their application note AND9173/D. Common issues include overheating, output voltage deviations, and input voltage drops. The guide provides step-by-step procedures to identify and resolve these issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MICROFJ-40035-TSV-TR1 Overview

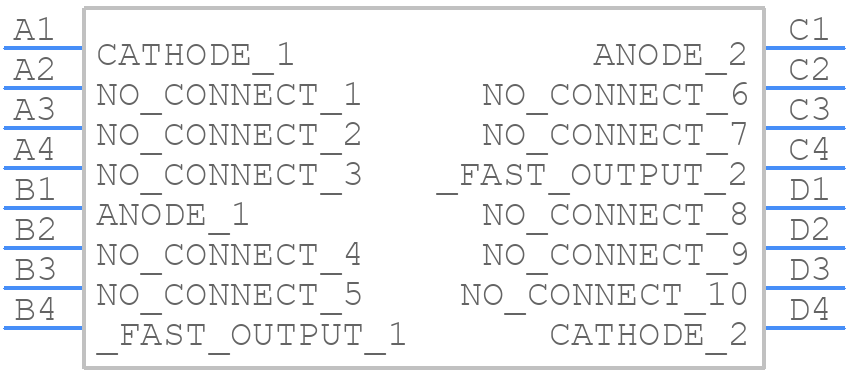

Use the download button to access the MICROFJ-40035-TSV-TR1 schematic symbol, PCB footprint, and 3D model.
