MICS-6814 footprint, schematic symbol and 3D model by Amphenol

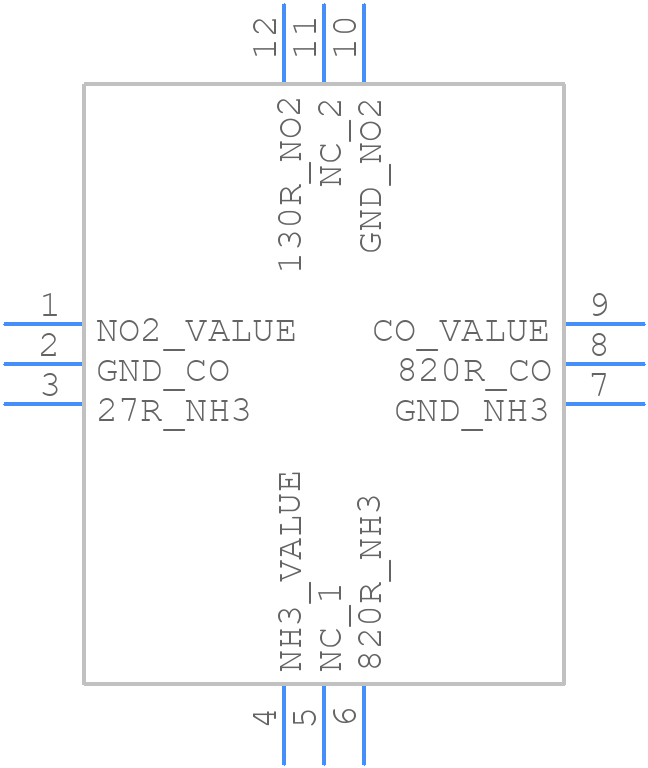

Symbol

click to zoom

PCB Footprints

MICS-6814 - Amphenol PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 1143

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MICS-6814
Part Number MICS-6814
Manufacturer Amphenol
Pin Count 12
Part Category Diode ESD (Uni-directional)
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 1143
Last Modified Date Apr 6, 2026 4:11 PM UTC
Pinout / Pin List Click Here (Member Only)

MICS-6814 Details

Manufacturer Part Number:
MICS-6814
Manufacturer:
Amphenol Corporation

Trust Checks

System Verified

MICS-6814 Overview

Use the download button to access the MICS-6814 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MICS-, or try a keyword search, such as EEPROMs
