MIMX8DX1AVLFZAC - NXP

Description: I.MX 8DUALXPLUS 21X21

Download MIMX8DX1AVLFZAC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

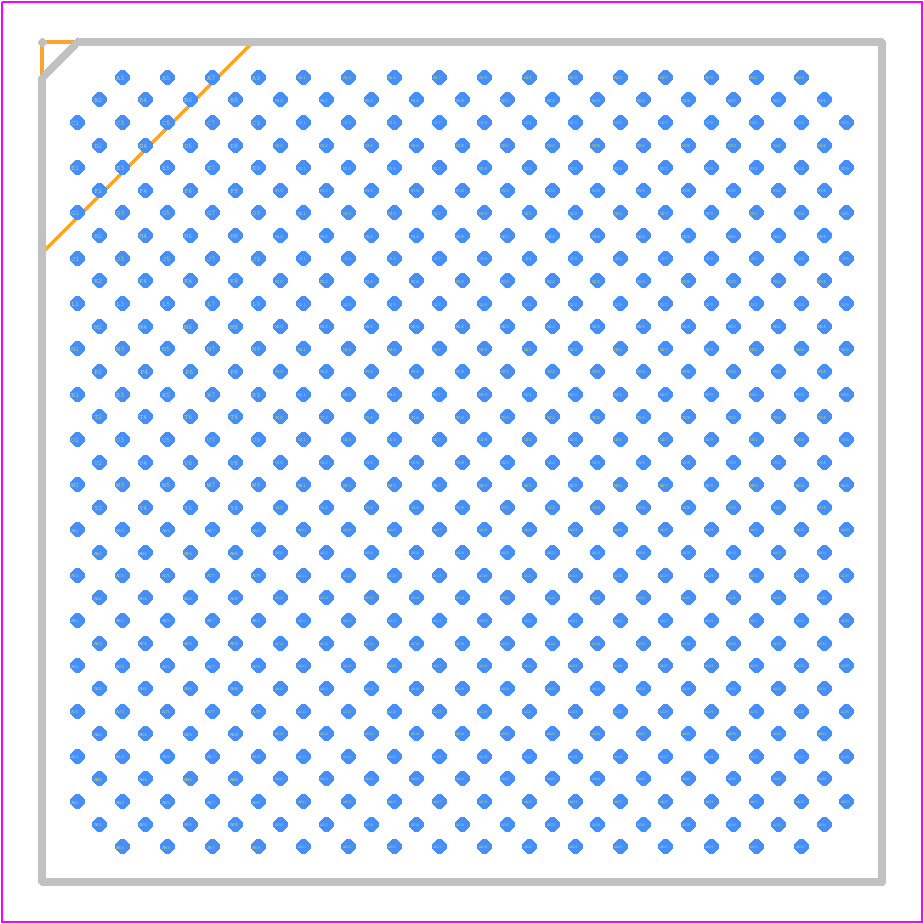

MIMX8DX1AVLFZAC - NXP PCB footprint - BGA - BGA - 21 x 21 mm FCPBGA
click to zoom
3D Models
MIMX8DX1AVLFZAC - NXP  - 3D model - BGA - 21 x 21 mm FCPBGA
click to zoom

MIMX8DX1AVLFZAC Details

  • Manufacturer Part Number:

    MIMX8DX1AVLFZAC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2020-04-09

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SOC

MIMX8DX1AVLFZAC Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_LOW, and then the core voltage (VDD_CORE). This ensures that the internal voltage regulators are properly enabled and the device boots up correctly.
  • The DDR memory interface on the MIMX8DX1AVLFZAC can be configured using the DDR Controller (DDRC) registers. The recommended configuration is to use the DDR4 mode with a clock frequency of 1600 MT/s and a data width of 32 bits. The DDR calibration process should also be performed to ensure reliable operation.
  • The maximum operating temperature range for the MIMX8DX1AVLFZAC is -40°C to 105°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • Secure boot on the MIMX8DX1AVLFZAC can be implemented using the High-Assurance Boot (HAB) mechanism. This involves generating a secure boot image using the NXP Code Signing Tool and programming it into the device's boot fuses. The HAB mechanism ensures that only authenticated and authorized firmware can boot on the device.
  • The maximum clock frequency supported by the MIMX8DX1AVLFZAC is 1.6 GHz for the Cortex-A35 cores and 650 MHz for the Cortex-M4 core. However, the actual clock frequency may vary depending on the specific use case and power consumption requirements.
