MIMX8DX5AVLFZAC footprint, schematic symbol and 3D model by NXP

Symbol

click to zoom

PCB Footprints

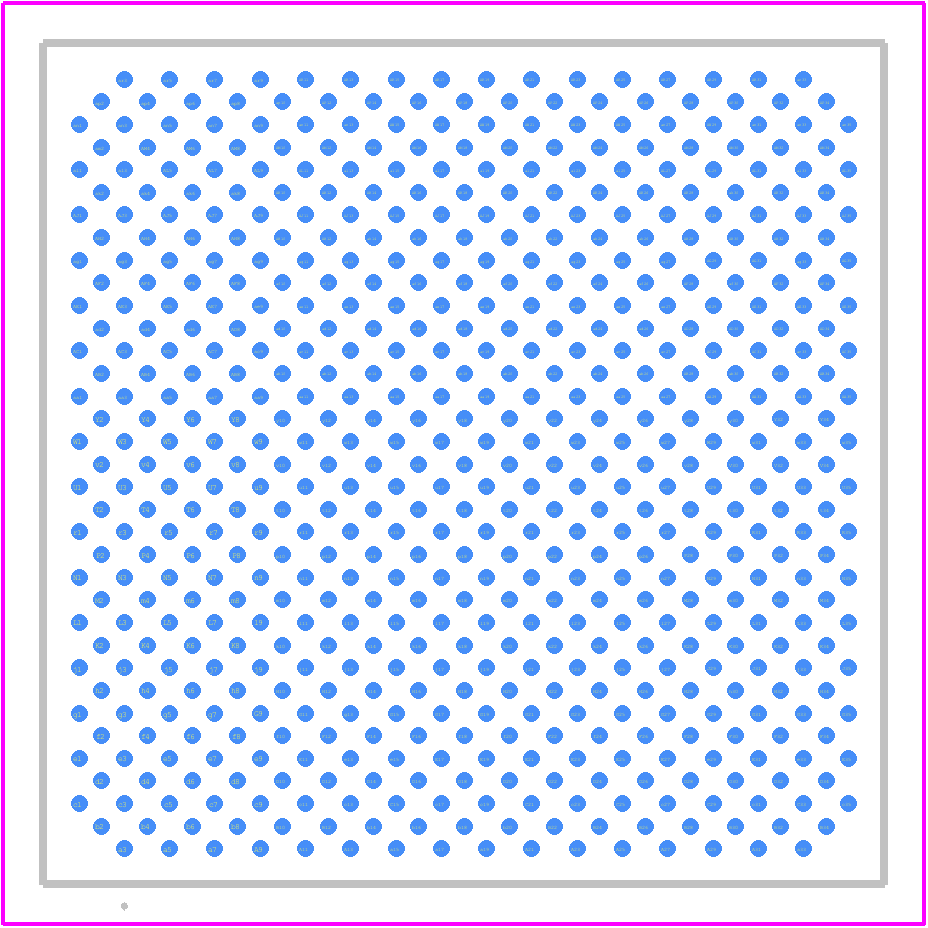

MIMX8DX5AVLFZAC - NXP PCB footprint - Other - Other - MIMX8DX5AVLFZAC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MIMX8DX5AVLFZAC
Part Number MIMX8DX5AVLFZAC
Manufacturer NXP
Pin Count 609
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MIMX8DX5AVLFZAC-1
Released Date Aug 2, 2021
Last Modified Date Nov 28, 2023 6:27 AM UTC
Pinout / Pin List Click Here (Member Only)

MIMX8DX5AVLFZAC Details

Manufacturer Part Number:
MIMX8DX5AVLFZAC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, South Korea
ECCN Code:
5A992.C
HTS Code:
8542.31.00.01
Factory Lead Time:
26 Weeks
Date Of Intro:
2020-04-09
Manufacturer:
NXP Semiconductors
YTEOL:
9
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Tin/Silver (Sn/Ag)
Time@Peak Reflow Temperature-Max (s):
40
uPs/uCs/Peripheral ICs Type:
SOC

MIMX8DX5AVLFZAC Frequently Asked Questions (FAQs)

The maximum operating temperature range for the MIMX8DX5AVLFZAC is -40°C to 105°C.
The DDR memory interface on the MIMX8DX5AVLFZAC can be configured using the DDR Controller (DDRC) module. Refer to the NXP documentation and the device tree source (DTS) files for configuration details.
The maximum clock speed of the MIMX8DX5AVLFZAC is 1.6 GHz.
The GPU on the MIMX8DX5AVLFZAC is a Vivante GC7000Lite. You can use the GPU by using the NXP-provided GPU drivers and APIs, or by using a third-party graphics framework such as OpenGL ES.
The power consumption of the MIMX8DX5AVLFZAC varies depending on the operating frequency, voltage, and usage scenario. Refer to the NXP documentation for power consumption estimates and guidelines for power optimization.

Trust Checks

Expert Contribution

System Verified

Community Approved

MIMX8DX5AVLFZAC Overview

Use the download button to access the MIMX8DX5AVLFZAC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MIMX8, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
