MIMX8ML6DVNLZAB - NXP

Description: SOC i.MX 8M ARM Cortex A53/ARM Cortex M7 548-Pin LFBGA Tray

Download MIMX8ML6DVNLZAB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX8ML6DVNLZAB - NXP - PCB symbol
click to zoom
PCB Footprints

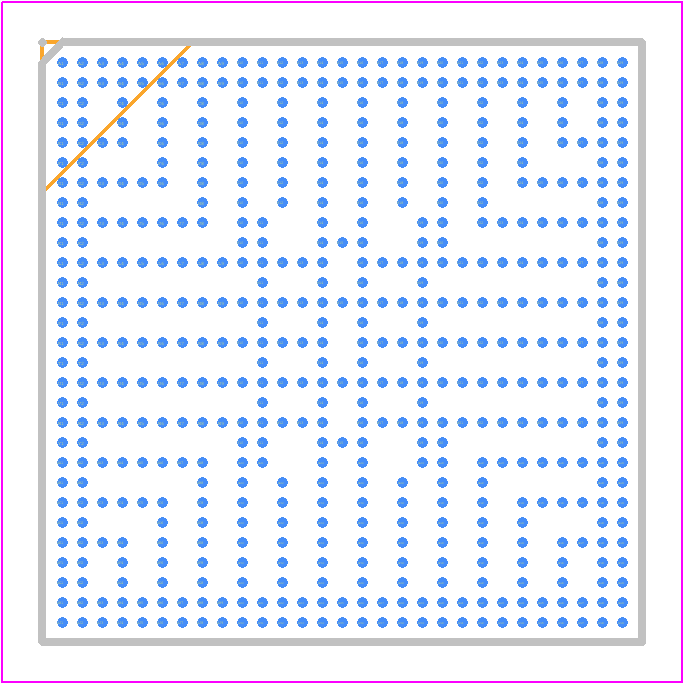

MIMX8ML6DVNLZAB - NXP PCB footprint - BGA - BGA - FC-BGA-548 I/O (15 X 15 X 1.331)
click to zoom
3D Models
MIMX8ML6DVNLZAB - NXP - 3D model - BGA - FC-BGA-548 I/O (15 X 15 X 1.331)
click to zoom

MIMX8ML6DVNLZAB Details

  • Manufacturer Part Number:

    MIMX8ML6DVNLZAB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MULTIFUNCTION PERIPHERAL

MIMX8ML6DVNLZAB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMX8ML6DVNLZAB is -40°C to 105°C.
  • The clock settings for the MIMX8ML6DVNLZAB can be configured using the Clock Controller (CCM) module. Refer to the NXP documentation and the device's reference manual for specific configuration details.
  • The maximum frequency of the CPU on the MIMX8ML6DVNLZAB is up to 1.6 GHz, while the maximum frequency of other peripherals varies depending on the specific peripheral and operating conditions.
  • Secure boot on the MIMX8ML6DVNLZAB can be implemented using the High-Assurance Boot (HAB) mechanism, which involves generating a secure boot image and configuring the device's boot mode. Refer to the NXP documentation and the device's reference manual for specific implementation details.
  • The power consumption characteristics of the MIMX8ML6DVNLZAB vary depending on the operating frequency, voltage, and other factors. Refer to the device's datasheet and NXP documentation for specific power consumption data.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMX8ML6DVNLZAB Overview

Use the download button to access the MIMX8ML6DVNLZAB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMX8, or try a keyword search, such as Multifunction Peripherals
