MIMX8ML8DVNLZAB - NXP

Description: Microprocessors - MPU i.MX 8M Plus, Consumer

Download MIMX8ML8DVNLZAB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX8ML8DVNLZAB - NXP - PCB symbol
click to zoom
PCB Footprints

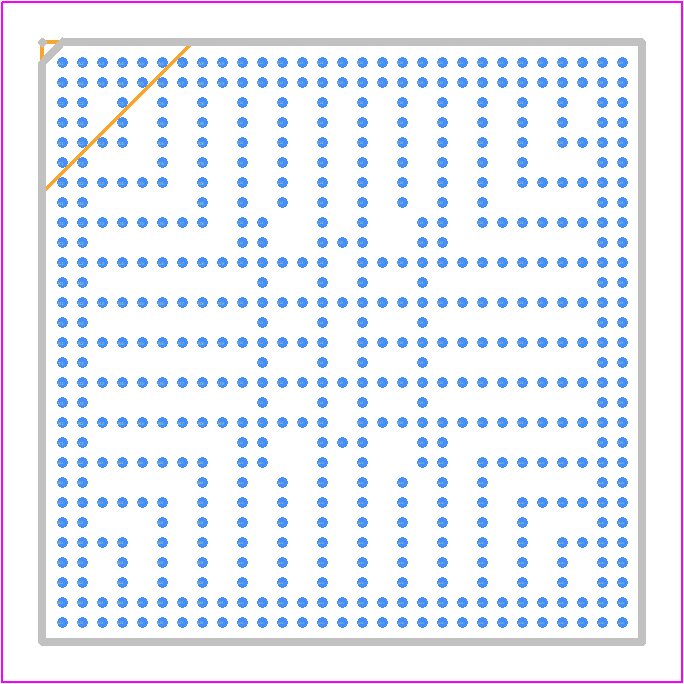

MIMX8ML8DVNLZAB - NXP PCB footprint - BGA - BGA - FC-BGA-548 I/O (15 X 15 X 1.331)
click to zoom
3D Models
MIMX8ML8DVNLZAB - NXP - 3D model - BGA - FC-BGA-548 I/O (15 X 15 X 1.331)
click to zoom

MIMX8ML8DVNLZAB Details

  • Manufacturer Part Number:

    MIMX8ML8DVNLZAB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MULTIFUNCTION PERIPHERAL

MIMX8ML8DVNLZAB Frequently Asked Questions (FAQs)

  • The MIMX8ML8DVNLZAB can operate in a temperature range of -40°C to 105°C.
  • The boot mode can be configured using the boot mode pins (BOOT_MODE[1:0]) and the boot configuration pins (BOOT_CFG[3:0]). Refer to the datasheet for specific pin configurations.
  • The maximum clock frequency for the CPU is 1.6 GHz, and for peripherals, it depends on the specific peripheral, but typically ranges from 100 MHz to 400 MHz.
  • Secure boot can be implemented using the High-Assurance Boot (HAB) feature, which uses a combination of hardware and software mechanisms to ensure the authenticity and integrity of the boot process.
  • The power consumption of the MIMX8ML8DVNLZAB depends on the operating mode and frequency. In active mode, the typical power consumption is around 2.5W, and in low-power mode, it can be as low as 10mW.
