MIMX8MM3CVTKZAA - NXP

Description: Processors - Application Specialized i.MX 8M Mini DualLite

Download MIMX8MM3CVTKZAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

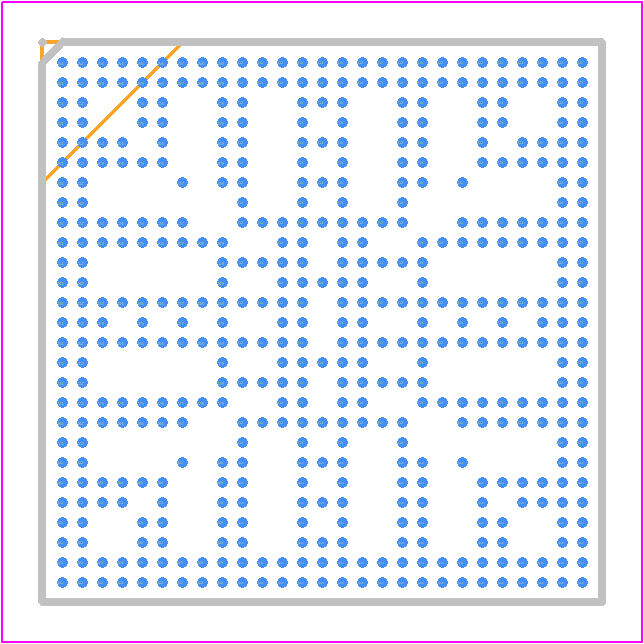

MIMX8MM3CVTKZAA - NXP PCB footprint - BGA - BGA - SOT-1967
click to zoom
3D Models
MIMX8MM3CVTKZAA - NXP  - 3D model - BGA - SOT-1967
click to zoom

MIMX8MM3CVTKZAA Details

  • Manufacturer Part Number:

    MIMX8MM3CVTKZAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-486

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-02-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B486

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    486

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA486,27X27,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max:

    1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MM3CVTKZAA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMX8MM3CVTKZAA is -40°C to 105°C.
  • The DDR memory interface on the MIMX8MM3CVTKZAA can be configured using the DDR Controller (DDRC) module. Refer to the NXP documentation and the device tree source (DTS) files for configuration details.
  • The maximum clock speed of the MIMX8MM3CVTKZAA is up to 1.6 GHz.
  • The GPU on the MIMX8MM3CVTKZAA is a Vivante GC7000Lite GPU. You can use it by using the NXP-provided GPU drivers and APIs, or by using a third-party GPU library such as OpenGL ES.
  • The power consumption of the MIMX8MM3CVTKZAA varies depending on the operating frequency, voltage, and usage scenario. Refer to the NXP documentation for power consumption estimates and guidelines for power management.
