MIMX8MM4CVTKZAA - NXP

Description: SOC ARM Cortex A53/ARM Cortex M4 486-Pin LFBGA Tray

Download MIMX8MM4CVTKZAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

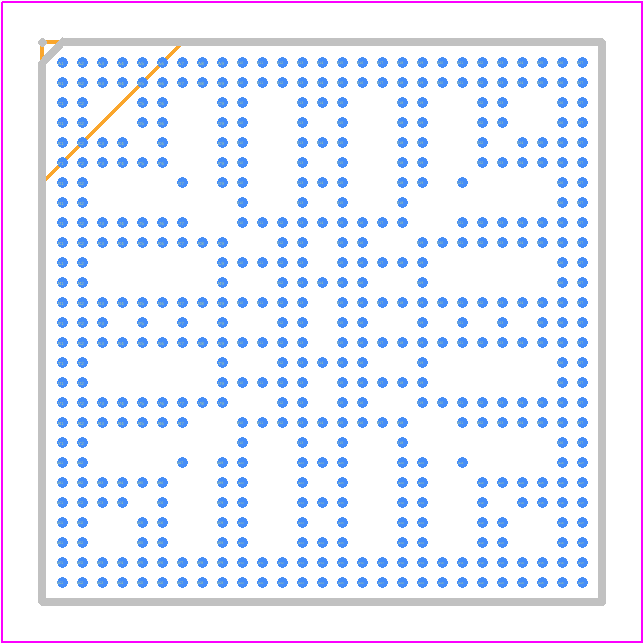

MIMX8MM4CVTKZAA - NXP PCB footprint - BGA - BGA - SOT-1967
click to zoom
3D Models
MIMX8MM4CVTKZAA - NXP  - 3D model - BGA - SOT-1967
click to zoom

MIMX8MM4CVTKZAA Details

  • Manufacturer Part Number:

    MIMX8MM4CVTKZAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-486

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2019-02-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Boundary Scan:

    YES

  • Bus Compatibility:

    ETHERNET; I2C; I2S; PCI; RS-232; SPI; UART; USB

  • JESD-30 Code:

    S-PBGA-B486

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    16

  • Number of Terminals:

    486

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA486,27X27,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    288K

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Max:

    1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MM4CVTKZAA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MIMX8MM4CVTKZAA is -40°C to 105°C.
  • The DDR memory interface on the MIMX8MM4CVTKZAA can be configured using the DDR Controller (DDRC) module. Refer to the NXP documentation and the Linux kernel source code for configuration examples.
  • The maximum clock frequency supported by the MIMX8MM4CVTKZAA is up to 1.6 GHz.
  • Secure boot on the MIMX8MM4CVTKZAA can be implemented using the High Assurance Boot (HAB) mechanism. Refer to the NXP documentation and the HAB user guide for implementation details.
  • The power consumption of the MIMX8MM4CVTKZAA varies depending on the operating frequency, voltage, and usage scenario. Refer to the NXP documentation for power consumption estimates and guidelines for power optimization.
