MIMX8MN1DVPIZAA - NXP

Description: Processors - Application Specialized i.MX 8M Nano UltraLite

Download MIMX8MN1DVPIZAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

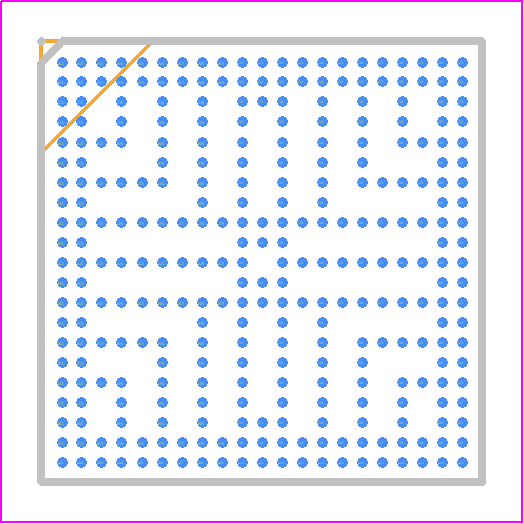

MIMX8MN1DVPIZAA - NXP PCB footprint - BGA - BGA - SOT2064-1
click to zoom
3D Models
MIMX8MN1DVPIZAA - NXP  - 3D model - BGA - SOT2064-1
click to zoom

MIMX8MN1DVPIZAA Details

  • Manufacturer Part Number:

    MIMX8MN1DVPIZAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-306

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B306

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    306

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA306,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.01 mm

  • Supply Voltage-Max:

    1 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8MN1DVPIZAA Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the other power rails. This ensures that the internal voltage regulators are powered up in the correct order.
  • The DDR memory interface on the MIMX8MN1DVPIZAA is configured using the DDRPHY and DDRCTRL registers. The DDRPHY register configures the DDR PHY settings, while the DDRCTRL register configures the DDR controller settings. Refer to the NXP documentation for specific register settings and configuration guidelines.
  • The maximum operating frequency of the MIMX8MN1DVPIZAA is 1.6 GHz. However, the actual operating frequency may vary depending on the specific use case and thermal conditions.
  • Secure boot on the MIMX8MN1DVPIZAA can be implemented using the BootROM and the Secure Boot Key (SBK) feature. The BootROM verifies the authenticity of the boot image using the SBK, ensuring that only authorized firmware can boot on the device.
  • The MIMX8MN1DVPIZAA has multiple boot modes, including Serial Download Mode, Boot Mode, and Recovery Mode. These modes allow for different boot scenarios, such as booting from an SD card, booting from a network, or recovering from a faulty boot image.
