- Stock & Prices $ Price & Stock for MIMX8UX5AVLFZAC
- Part Number MIMX8UX5AVLFZAC
- Manufacturer NXP
- Pin Count 609
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - 21 x 21 mm FCPBGA
- Released Date May 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MIMX8UX5AVLFZAC Details
-
Manufacturer Part Number:
MIMX8UX5AVLFZAC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
FCPBGA-609
-
Country Of Origin:
Malaysia, South Korea
-
HTS Code:
8542.31.00.30
-
Factory Lead Time:
26 Weeks
-
Date Of Intro:
2020-04-09
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
12
-
Boundary Scan:
YES
MIMX8UX5AVLFZAC Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_LOW, and then the core voltage (VDD_CORE). This ensures that the internal voltage regulators are properly enabled.
-
The DDR memory interface can be configured using the DDRPHY register settings. The recommended settings can be found in the NXP application note AN12115. Additionally, the DDR memory interface can be configured using the NXP-provided DDR tuning tool.
-
The maximum operating temperature range for the MIMX8UX5AVLFZAC is -40°C to 105°C. However, the device can be operated at a reduced frequency and voltage at higher temperatures up to 125°C.
-
Secure boot on the MIMX8UX5AVLFZAC can be implemented using the High-Assurance Boot (HAB) mechanism. This involves generating a secure boot image using the NXP-provided tools and programming it into the device's boot fuses.
-
The maximum clock frequency for the Cortex-A35 core on the MIMX8UX5AVLFZAC is 1.6 GHz. However, the actual clock frequency may vary depending on the device's operating conditions and power management settings.
Trust Checks
Community Provided
System Verified
Community Approved
MIMX8UX5AVLFZAC Overview

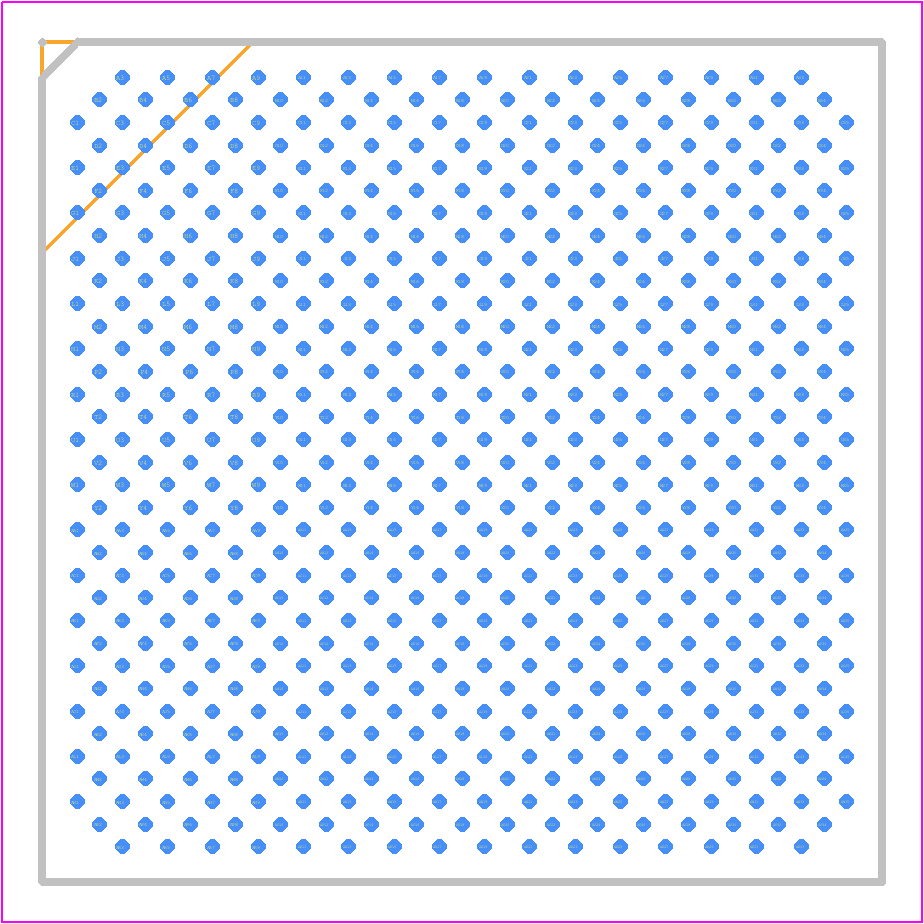

Use the download button to access the MIMX8UX5AVLFZAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMX8,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
