MIMX8UX5CVLFZAC - NXP

Description: i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR

Download MIMX8UX5CVLFZAC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX8UX5CVLFZAC - NXP - PCB symbol
click to zoom
PCB Footprints

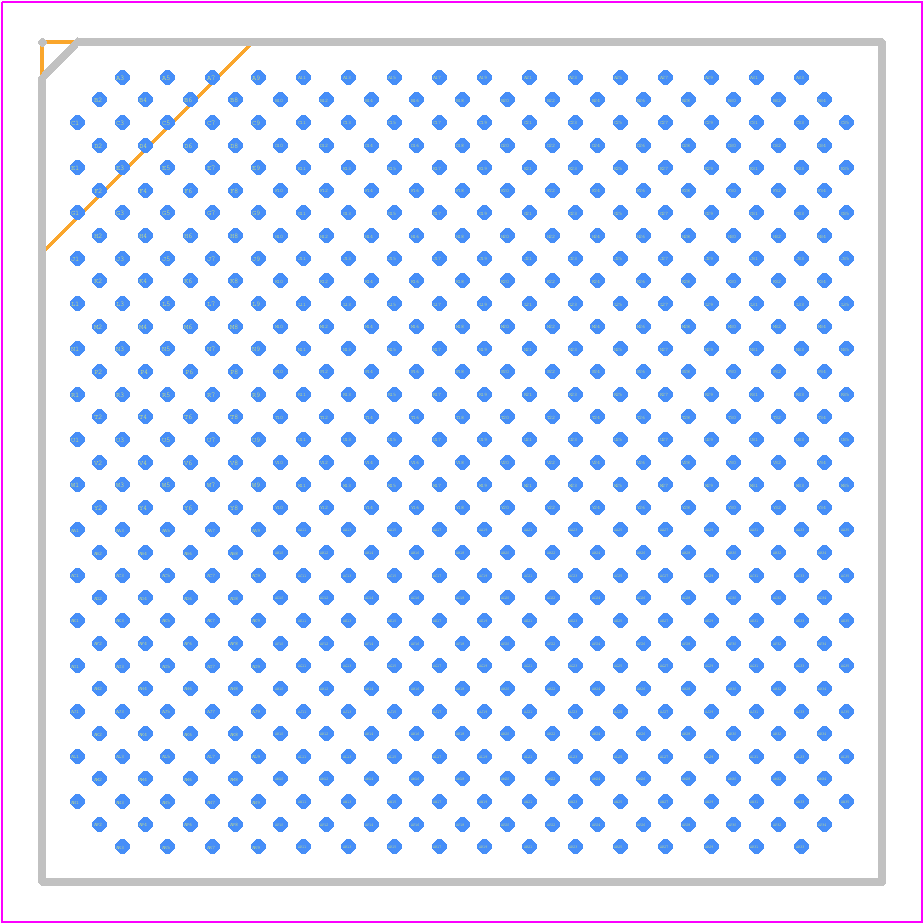

MIMX8UX5CVLFZAC - NXP PCB footprint - BGA - BGA - SOT1916-1
click to zoom
3D Models
MIMX8UX5CVLFZAC - NXP - 3D model - BGA - SOT1916-1
click to zoom

MIMX8UX5CVLFZAC Details

  • Manufacturer Part Number:

    MIMX8UX5CVLFZAC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-05-13

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMX8UX5CVLFZAC Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MIMX8UX5CVLFZAC is -40°C to 105°C, with a junction temperature of up to 125°C.
  • The DDR memory interface on the MIMX8UX5CVLFZAC can be configured using the DDR Controller (DDRC) registers. Refer to the NXP documentation and the Linux kernel source code for examples of how to configure the DDR interface.
  • The maximum clock frequency supported by the MIMX8UX5CVLFZAC is 1.6 GHz for the Cortex-A35 and Cortex-A53 cores, and 650 MHz for the Cortex-M4 core.
  • The GPU on the MIMX8UX5CVLFZAC is a Vivante GC7000Lite GPU. To use the GPU, you will need to use a graphics driver and API such as OpenGL ES or Vulkan. NXP provides a GPU driver and documentation as part of their Linux BSP.
  • The power consumption of the MIMX8UX5CVLFZAC varies depending on the operating frequency, voltage, and usage scenario. According to the datasheet, the typical power consumption is around 2-3W for the entire SoC, but this can be optimized using power-saving features and low-power modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMX8UX5CVLFZAC Overview

Use the download button to access the MIMX8UX5CVLFZAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMX8, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
