MIMX9352CVVXMAB - NXP

Description: Processors - Application Specialized i.MX93 BGA11

Download MIMX9352CVVXMAB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMX9352CVVXMAB - NXP - PCB symbol
click to zoom
PCB Footprints

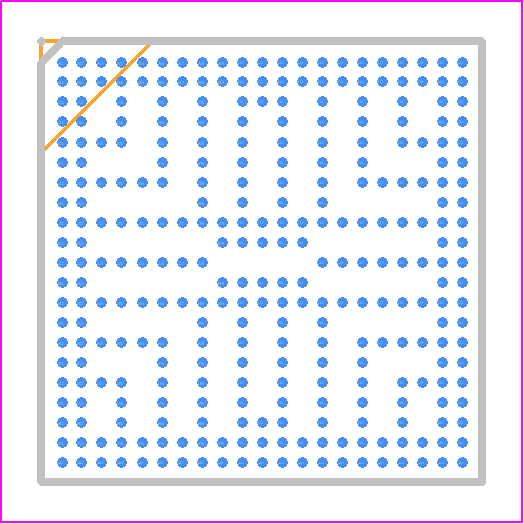

MIMX9352CVVXMAB - NXP PCB footprint - BGA - BGA - SOT2167-1_2025
click to zoom
3D Models
MIMX9352CVVXMAB - NXP - 3D model - BGA - SOT2167-1_2025
click to zoom

MIMX9352CVVXMAB Details

  • Manufacturer Part Number:

    MIMX9352CVVXMAB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-306

  • Country Of Origin:

    South Korea, Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    12

  • JESD-30 Code:

    S-PBGA-B306

  • JESD-609 Code:

    e2

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    306

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA306,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.22 mm

  • Supply Voltage-Max:

    0.9 V

  • Supply Voltage-Min:

    0.8 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    11 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC
