MIMXRT1041XJM5B - NXP

Description: The i.MX RT1040 processors are based on Arm Cortex-M7 Core Platform, which has the following features: • Supports single Arm Cortex-M7 Core with: — 32 KB L1 Instruction Cache — 32 KB L1 Data Cache — Full featured Floating Point Unit (FPU) with support of the VFPv5 architecture — Support the Armv7-M Thumb instruction set • Integrated MPU, up to 16 individual protection regions • Tightly coupled GPIOs, operating at the same frequency as Arm Core • Up to 512 KB I-TCM and D-TCM in total • Frequency of

Download MIMXRT1041XJM5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1041XJM5B - NXP - PCB symbol
click to zoom
PCB Footprints

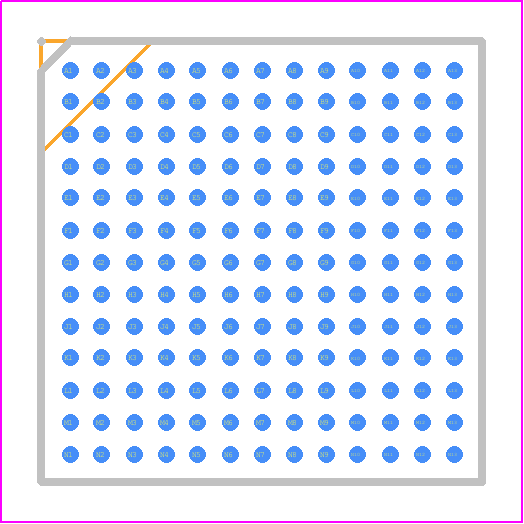

MIMXRT1041XJM5B - NXP PCB footprint - BGA - BGA - 169BGA..
click to zoom

MIMXRT1041XJM5B Details

  • Manufacturer Part Number:

    MIMXRT1041XJM5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    11

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1041XJM5B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT1041XJM5B is -40°C to 105°C.
  • The clock settings for the MIMXRT1041XJM5B can be configured using the Clock Control API (CLOCK) in the device's SDK. The API provides functions to set the clock frequency, enable/disable clocks, and configure clock sources.
  • The maximum current consumption of the MIMXRT1041XJM5B depends on the operating mode and frequency. According to the datasheet, the maximum current consumption is around 350mA at 528MHz with all peripherals enabled.
  • The MIMXRT1041XJM5B supports secure boot using the Bootloader and Secure Boot (BSB) module. To implement secure boot, you need to generate a secure boot key, create a bootable image, and configure the BSB module to use the secure boot key.
  • The MIMXRT1041XJM5B has 1MB of on-chip flash memory and 384KB of on-chip SRAM.
