MIMXRT1042XJM5B - NXP

Description: ARM® Cortex®-M7 RT1040 Microcontroller IC 32-Bit 528MHz 128KB (128K x 8) ROM 169-LFBGA (11x11)

Download MIMXRT1042XJM5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1042XJM5B - NXP - PCB symbol
click to zoom
PCB Footprints

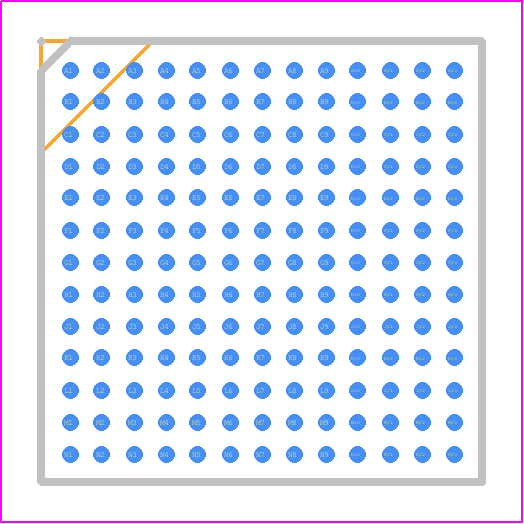

MIMXRT1042XJM5B - NXP PCB footprint - BGA - BGA - SOT2151-1
click to zoom
3D Models
MIMXRT1042XJM5B - NXP - 3D model - BGA - SOT2151-1
click to zoom

MIMXRT1042XJM5B Details

  • Manufacturer Part Number:

    MIMXRT1042XJM5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    11

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1042XJM5B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT1042XJM5B is -40°C to 105°C.
  • The clock settings for the MIMXRT1042XJM5B can be configured using the Clock Control API (CLOCK) module. Refer to the NXP documentation and the device's reference manual for more information.
  • The maximum frequency of the MIMXRT1042XJM5B is 528 MHz.
  • The FlexSPI interface on the MIMXRT1042XJM5B can be used to connect to external flash memory devices. Refer to the NXP documentation and the device's reference manual for more information on configuring and using the FlexSPI interface.
  • The power consumption of the MIMXRT1042XJM5B varies depending on the operating mode and frequency. Refer to the datasheet for more information on the device's power consumption characteristics.
