MIMXRT1051CVJ5BR - NXP

Description: 12 x 12 mm, 0.8 mm pitch, 196-pin MAPBGA

Download MIMXRT1051CVJ5BR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1051CVJ5BR - NXP - PCB symbol
click to zoom
PCB Footprints

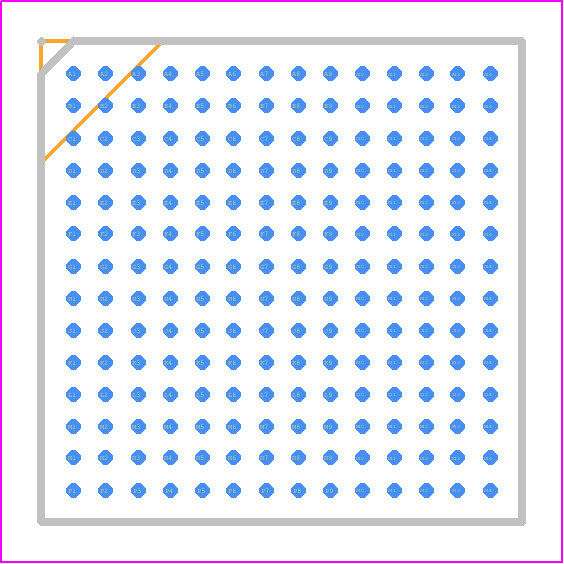

MIMXRT1051CVJ5BR - NXP PCB footprint - BGA - BGA - 12 mm x 12 mm x 1.37 mm
click to zoom
3D Models
MIMXRT1051CVJ5BR - NXP - 3D model - BGA - 12 mm x 12 mm x 1.37 mm
click to zoom

MIMXRT1051CVJ5BR Details

  • Manufacturer Part Number:

    MIMXRT1051CVJ5BR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-196

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1051CVJ5BR Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the MIMXRT1051CVJ5BR is 24 MHz or 32 kHz. However, the device can support other frequencies as well, depending on the application requirements.
  • The clock settings for the MIMXRT1051CVJ5BR can be configured using the Clock Control Module (CCM) registers. The CCM module allows you to configure the clock sources, dividers, and multiplexers to generate the desired clock frequencies for the device.
  • The maximum operating frequency of the MIMXRT1051CVJ5BR is 528 MHz. However, the actual operating frequency may vary depending on the application requirements and the clock configuration.
  • The FlexSPI interface on the MIMXRT1051CVJ5BR can be used to connect to external serial flash memories or other devices. To use the FlexSPI interface, you need to configure the FlexSPI module registers and pins, and then use the FlexSPI API to perform read and write operations.
  • The power consumption of the MIMXRT1051CVJ5BR varies depending on the operating mode. In Run mode, the power consumption is typically around 150 mA/MHz. In Low Power mode, the power consumption is around 10-20 mA. In Deep Sleep mode, the power consumption is around 1-2 mA. The actual power consumption may vary depending on the application requirements and the device configuration.
