MIMXRT1052CVL5A - NXP

Description: ARM Microcontrollers - MCU i.MX RT1050 Industrial 600Mhz

Download MIMXRT1052CVL5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1052CVL5A - NXP - PCB symbol
click to zoom
PCB Footprints

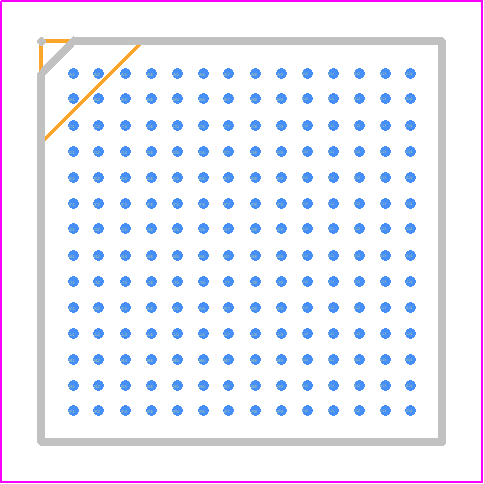

MIMXRT1052CVL5A - NXP PCB footprint - BGA - BGA - 10 x 10 mm, 0.65 pitch, 196 MAPBGA
click to zoom
3D Models
MIMXRT1052CVL5A - NXP - 3D model - BGA - 10 x 10 mm, 0.65 pitch, 196 MAPBGA
click to zoom

MIMXRT1052CVL5A Details

  • Manufacturer Part Number:

    MIMXRT1052CVL5A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-196

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • Additional Feature:

    24MHZ NOMINAL CRYSTAL FREQUENCY AVAILABLE

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    10 mm

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1052CVL5A Frequently Asked Questions (FAQs)

  • The MIMXRT1052CVL5A has an operating temperature range of -40°C to 105°C.
  • The clock settings for the MIMXRT1052CVL5A can be configured using the Clock Control Module (CCM) registers. Refer to the MIMXRT1052CVL5A reference manual for detailed information on clock configuration.
  • The MIMXRT1052CVL5A has a maximum frequency of 528 MHz.
  • The FlexSPI interface on the MIMXRT1052CVL5A can be used to connect to external flash memory devices. Refer to the MIMXRT1052CVL5A reference manual for detailed information on configuring and using the FlexSPI interface.
  • The power consumption of the MIMXRT1052CVL5A varies depending on the operating mode and frequency. Refer to the MIMXRT1052CVL5A datasheet for detailed power consumption specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT1052CVL5A Overview

Use the download button to access the MIMXRT1052CVL5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
