MIMXRT1052CVL5BR - NXP

Description: i.MX RT1050 Crossover Processor with Arm® Cortex®-M7 core

Download MIMXRT1052CVL5BR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1052CVL5BR - NXP - PCB symbol
click to zoom
PCB Footprints

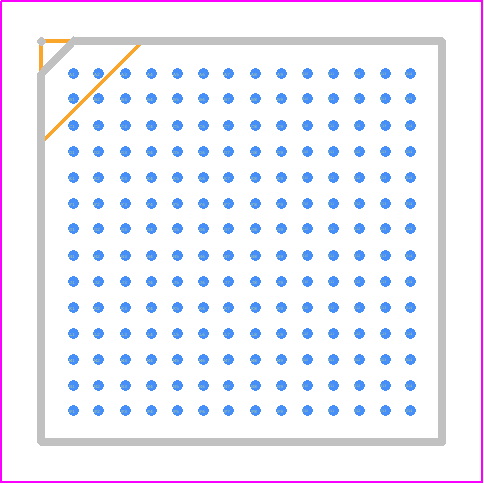

MIMXRT1052CVL5BR - NXP PCB footprint - BGA - BGA - SOT1546-2
click to zoom
3D Models
MIMXRT1052CVL5BR - NXP - 3D model - BGA - SOT1546-2
click to zoom

MIMXRT1052CVL5BR Details

  • Manufacturer Part Number:

    MIMXRT1052CVL5BR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-196

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1052CVL5BR Frequently Asked Questions (FAQs)

  • The MIMXRT1052CVL5BR has an operating temperature range of -40°C to 105°C.
  • The clock settings for the MIMXRT1052CVL5BR can be configured using the Clock Control Module (CCM) registers. Refer to the device's reference manual for detailed information on clock configuration.
  • The MIMXRT1052CVL5BR's CPU can operate at a maximum frequency of 528 MHz.
  • The MIMXRT1052CVL5BR's DMA controller can be used to transfer data between peripherals and memory. Refer to the device's reference manual for detailed information on DMA configuration and usage.
  • The MIMXRT1052CVL5BR's TrustZone security feature provides a secure environment for executing trusted code and protecting sensitive data. It allows for the creation of a secure world and a non-secure world, with the secure world having access to sensitive resources and peripherals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT1052CVL5BR Overview

Use the download button to access the MIMXRT1052CVL5BR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
