MIMXRT1052DVL6A - NXP

Description: NXP - MIMXRT1052DVL6A - Microprocessor, i.MX RT1050 Series, 32bit, 96KB, 600MHz, 1.25V to 1.3V, MAPBGA-196

Download MIMXRT1052DVL6A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1052DVL6A - NXP - PCB symbol
click to zoom
PCB Footprints

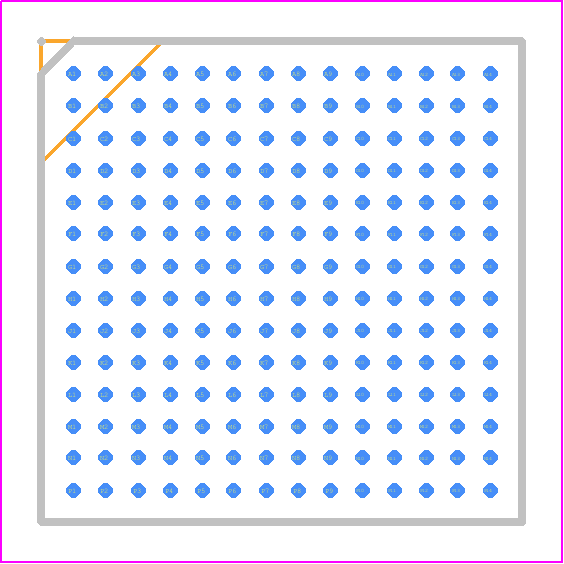

MIMXRT1052DVL6A - NXP PCB footprint - BGA - BGA - SOT1968-1
click to zoom
3D Models
MIMXRT1052DVL6A - NXP - 3D model - BGA - SOT1968-1
click to zoom

MIMXRT1052DVL6A Details

  • Manufacturer Part Number:

    MIMXRT1052DVL6A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-196

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    24 MHz

  • Format:

    FLOATING-POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    32

  • Number of Serial I/Os:

    29

  • Number of Terminals:

    196

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    524288

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.43 mm

  • Speed:

    600 MHz

  • Supply Current-Max:

    105 mA

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1052DVL6A Frequently Asked Questions (FAQs)

  • The MIMXRT1052DVL6A can operate from -40°C to 105°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock system on the MIMXRT1052DVL6A can be configured using the Clock Control Module (CCM) registers. The CCM provides a flexible clocking system that allows you to configure the clock sources, dividers, and multiplexers to generate the desired clock frequencies for the various peripherals and domains.
  • The maximum frequency of the CPU on the MIMXRT1052DVL6A is 528 MHz, but it can be configured to run at lower frequencies to reduce power consumption.
  • The FlexSPI interface on the MIMXRT1052DVL6A is a flexible serial peripheral interface that can be used to connect to external serial flash memories, displays, and other devices. It can be configured using the FlexSPI registers and can operate in various modes, including SPI, Quad SPI, and Octal SPI.
  • The TrustZone-M security feature on the MIMXRT1052DVL6A is a security extension that provides an additional layer of protection for sensitive code and data. It allows you to isolate secure and non-secure regions of code and data, and provides features such as secure boot, secure firmware updates, and secure data storage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT1052DVL6A Overview

Use the download button to access the MIMXRT1052DVL6A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
