MIMXRT1061DVJ6A - NXP

Description: Processors - Application Specialized i.MXRT1060

Download MIMXRT1061DVJ6A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1061DVJ6A - NXP - PCB symbol
click to zoom
PCB Footprints

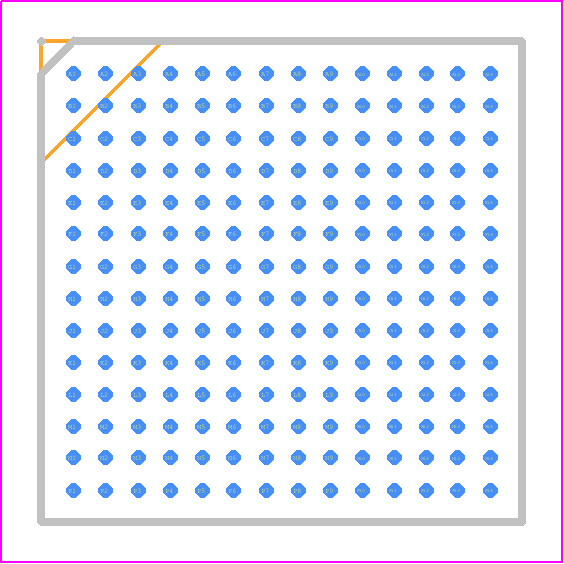

MIMXRT1061DVJ6A - NXP PCB footprint - BGA - BGA - PBGA, LOW PROFILE , FINE PITCH,196I/O,10X10 PKG,0.65MM PITCH (MAP)
click to zoom
3D Models
MIMXRT1061DVJ6A - NXP - 3D model - BGA - PBGA, LOW PROFILE , FINE PITCH,196I/O,10X10 PKG,0.65MM PITCH (MAP)
click to zoom

MIMXRT1061DVJ6A Details

  • Manufacturer Part Number:

    MIMXRT1061DVJ6A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2019-04-29

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e2

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1061DVJ6A Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT1061DVJ6A is -40°C to 105°C.
  • The clock settings for the MIMXRT1061DVJ6A can be configured using the Clock Control Module (CCM) registers. Refer to the MIMXRT1061DVJ6A reference manual for more information.
  • The maximum frequency of the Cortex-M7 core in the MIMXRT1061DVJ6A is 528 MHz.
  • The FlexSPI interface on the MIMXRT1061DVJ6A can be used to connect to external flash memory devices. Refer to the MIMXRT1061DVJ6A reference manual and the FlexSPI driver documentation for more information.
  • The power consumption of the MIMXRT1061DVJ6A varies depending on the operating mode. In Run mode, the power consumption is approximately 250 mW/MHz. In Low Power mode, the power consumption is approximately 10 μW. Refer to the MIMXRT1061DVJ6A datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT1061DVJ6A Overview

Use the download button to access the MIMXRT1061DVJ6A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
