MIMXRT1062CVL5B - NXP

Description: NXP - MIMXRT1062CVL5B - Microprocessor, i.MX RT106x, 528MHz, 32bit, -40 °C to 105 °C, MAPBGA

Download MIMXRT1062CVL5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1062CVL5B - NXP - PCB symbol
click to zoom
PCB Footprints

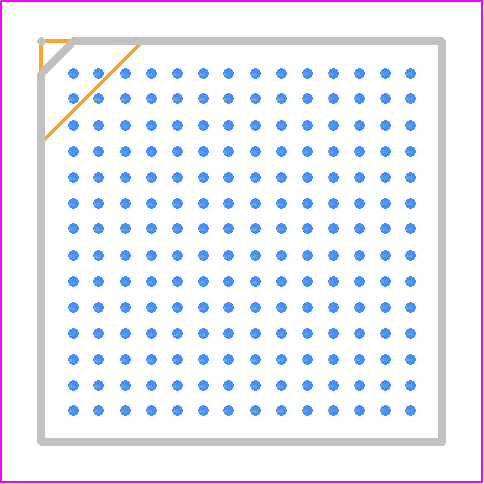

MIMXRT1062CVL5B - NXP PCB footprint - BGA - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom
3D Models
MIMXRT1062CVL5B - NXP - 3D model - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom

MIMXRT1062CVL5B Details

  • Manufacturer Part Number:

    MIMXRT1062CVL5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-196

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.43 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1062CVL5B Frequently Asked Questions (FAQs)

  • The MIMXRT1062CVL5B has an operating temperature range of -40°C to 105°C.
  • The clock system on the MIMXRT1062CVL5B can be configured using the Clock Control Module (CCM) registers. The CCM provides a flexible clocking scheme that allows the user to configure the clock sources, dividers, and multiplexers to generate the desired clock frequencies.
  • The maximum frequency of the CPU on the MIMXRT1062CVL5B is 528 MHz.
  • The FlexSPI interface on the MIMXRT1062CVL5B is a flexible serial peripheral interface that can be used to connect to external serial flash memories or other serial devices. The interface can be configured using the FlexSPI registers and can operate in either master or slave mode.
  • The TrustZone-M security feature on the MIMXRT1062CVL5B provides a secure environment for executing trusted code and protecting sensitive data. It uses a combination of hardware and software mechanisms to create a secure zone that is isolated from the non-secure zone.
