MIMXRT1062DVJ6A - NXP

Description: Processors - Application Specialized i.MXRT1060

Download MIMXRT1062DVJ6A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

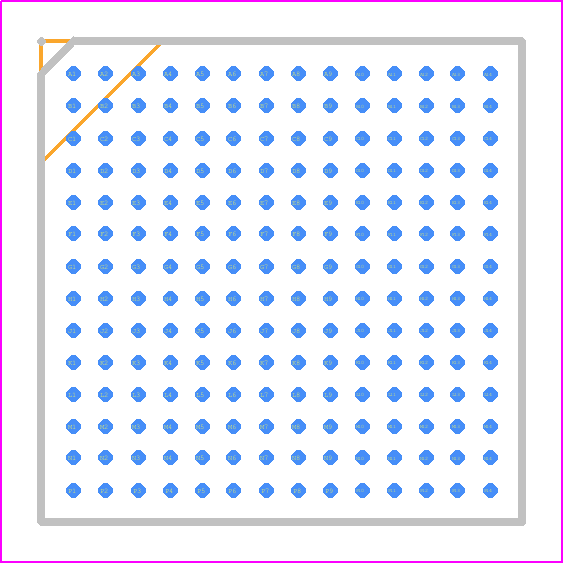

MIMXRT1062DVJ6A - NXP PCB footprint - BGA - BGA - 12 mm x 12 mm x 1.37 mm
click to zoom
3D Models
MIMXRT1062DVJ6A - NXP  - 3D model - BGA - 12 mm x 12 mm x 1.37 mm
click to zoom

MIMXRT1062DVJ6A Details

  • Manufacturer Part Number:

    MIMXRT1062DVJ6A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-08-28

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e2

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1062DVJ6A Frequently Asked Questions (FAQs)

  • The MIMXRT1062DVJ6A can operate from -40°C to 105°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock system on the MIMXRT1062DVJ6A can be configured using the Clock Control Module (CCM) registers. The CCM provides a flexible clocking system that allows you to configure the clock sources, dividers, and multiplexers to generate the desired clock frequencies for the various peripherals and domains.
  • The maximum frequency of the CPU on the MIMXRT1062DVJ6A is 528 MHz, but it can be overclocked to 600 MHz with reduced voltage and temperature ranges.
  • The FlexSPI interface on the MIMXRT1062DVJ6A is a flexible serial peripheral interface that can be used to connect to external flash memories, displays, and other devices. It can be configured using the FlexSPI registers and can operate in various modes, including single, dual, and quad modes.
  • The power consumption of the MIMXRT1062DVJ6A depends on the operating frequency, voltage, and peripherals used. In active mode, the typical current consumption is around 150 mA at 528 MHz, and in low-power mode, it can be as low as 20 μA.
