MIMXRT1064CVJ5A - NXP

Description: ARM Microcontrollers - MCU i.MXRT1064 12*12

Download MIMXRT1064CVJ5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT1064CVJ5A - NXP - PCB symbol
click to zoom
PCB Footprints

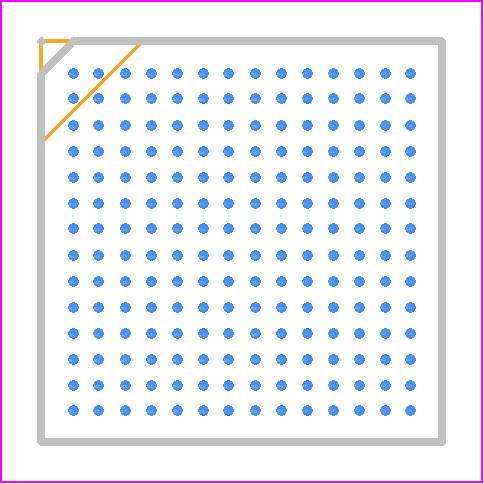

MIMXRT1064CVJ5A - NXP PCB footprint - BGA - BGA - 196 bga
click to zoom
3D Models
MIMXRT1064CVJ5A - NXP - 3D model - BGA - 196 bga
click to zoom

MIMXRT1064CVJ5A Details

  • Manufacturer Part Number:

    MIMXRT1064CVJ5A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MABGA-196

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2019-05-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,31

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT1064CVJ5A Frequently Asked Questions (FAQs)

  • The MIMXRT1064CVJ5A can operate from -40°C to 105°C, but the recommended operating temperature range is 0°C to 90°C for optimal performance and reliability.
  • The clock system on the MIMXRT1064CVJ5A can be configured using the Clock Control Module (CCM) registers. The CCM provides a flexible clocking system that allows you to configure the clock sources, dividers, and multiplexers to generate the desired clock frequencies for the various peripherals and domains.
  • The maximum frequency of the CPU on the MIMXRT1064CVJ5A is 528 MHz, but it can be configured to run at lower frequencies to reduce power consumption.
  • The FlexSPI interface on the MIMXRT1064CVJ5A is a flexible serial peripheral interface that can be used to connect to external serial flash memories or other serial devices. To use the FlexSPI interface, you need to configure the FlexSPI module using the FlexSPI registers and enable the clock to the FlexSPI module.
  • The TrustZone-M security extension on the MIMXRT1064CVJ5A provides a secure environment for executing trusted code and protecting sensitive data. It allows you to create a secure world and a non-secure world, and provides features such as secure boot, secure firmware updates, and secure data storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT1064CVJ5A Overview

Use the download button to access the MIMXRT1064CVJ5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
