MIMXRT106FCVL5B - NXP

Description: ARM Microcontrollers - MCU i.MXRT106A, USB Fix

Download MIMXRT106FCVL5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT106FCVL5B - NXP - PCB symbol
click to zoom
PCB Footprints

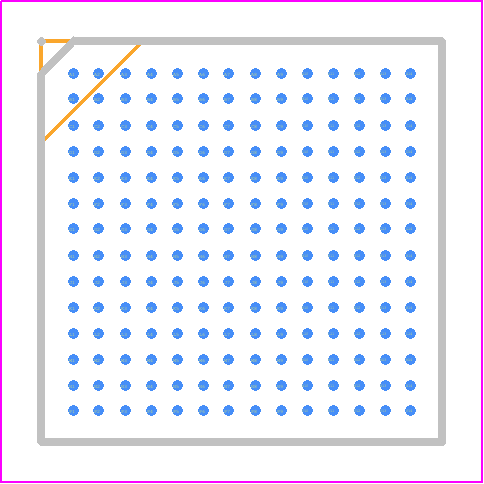

MIMXRT106FCVL5B - NXP PCB footprint - BGA - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom
3D Models
MIMXRT106FCVL5B - NXP - 3D model - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom

MIMXRT106FCVL5B Details

  • Manufacturer Part Number:

    MIMXRT106FCVL5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-196

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.43 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT106FCVL5B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT106FCVL5B is -40°C to 105°C, but it can be extended to 125°C with some limitations. However, it's recommended to consult the datasheet and NXP's application notes for specific temperature-related considerations.
  • The clock system on the MIMXRT106FCVL5B can be configured using the Clock Controller (CCM) module. You'll need to set up the clock sources, dividers, and multiplexers to generate the desired clock frequencies for the various peripherals and domains. NXP provides a Clock Configuration Tool (CCT) to help with this process.
  • The maximum frequency of the Cortex-M7 core on the MIMXRT106FCVL5B is 528 MHz, but it can be overclocked to 600 MHz with some limitations. However, it's essential to ensure that the device is operated within its specified power and thermal limits to avoid damage or malfunction.
  • The FlexSPI interface on the MIMXRT106FCVL5B is a flexible SPI interface that can be configured to interface with various types of external memory devices, such as QSPI flash, SPI flash, and SRAM. You'll need to configure the FlexSPI module to match the specific requirements of your external device, including the clock frequency, data width, and protocol.
  • The TrustZone-M security feature on the MIMXRT106FCVL5B is a security extension that provides an additional layer of protection for sensitive code and data. It allows you to create a secure environment for your application, isolating it from non-secure code and protecting it from unauthorized access.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIMXRT106FCVL5B Overview

Use the download button to access the MIMXRT106FCVL5B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIMXR, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
