MIMXRT106SCVL5B - NXP

Description: ARM Microcontrollers - MCU i.MXRT106A, USB Fix

Download MIMXRT106SCVL5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MIMXRT106SCVL5B - NXP - PCB symbol
click to zoom
PCB Footprints

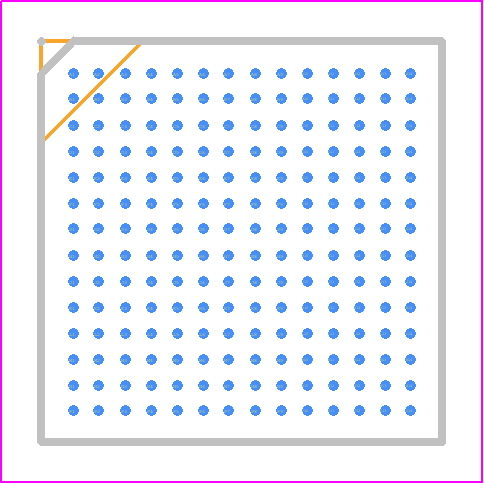

MIMXRT106SCVL5B - NXP PCB footprint - BGA - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom
3D Models
MIMXRT106SCVL5B - NXP - 3D model - BGA - 10 x 10 mm BGA(pitch 0.65mm)
click to zoom

MIMXRT106SCVL5B Details

  • Manufacturer Part Number:

    MIMXRT106SCVL5B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-196

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B196

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.43 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT106SCVL5B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT106SCVL5B is -40°C to 105°C.
  • The clock settings for the MIMXRT106SCVL5B can be configured using the Clock Control Module (CCM) registers. Refer to the device's reference manual for detailed information on clock configuration.
  • The maximum frequency of the MIMXRT106SCVL5B's CPU is 528 MHz.
  • The FlexSPI interface on the MIMXRT106SCVL5B can be used to connect to external flash memory devices. Refer to the device's reference manual for detailed information on configuring and using the FlexSPI interface.
  • The TrustZone-M security feature on the MIMXRT106SCVL5B provides a secure environment for executing sensitive code and storing sensitive data. It uses a combination of hardware and software mechanisms to provide secure boot, secure firmware updates, and secure data storage.
