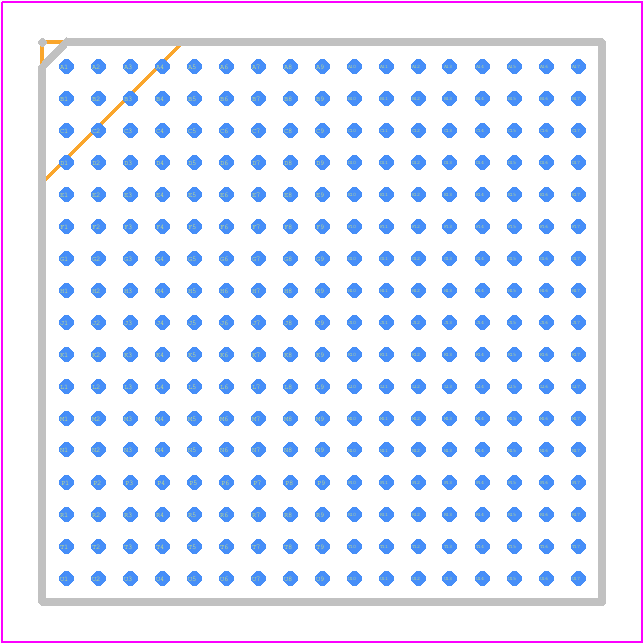

MIMXRT117FDVMAA - NXP PCB footprint - BGA - BGA - 289_BGA_2021
click to zoom
3D Models
MIMXRT117FDVMAA - NXP  - 3D model - BGA - 289_BGA_2021
click to zoom

MIMXRT117FDVMAA Details

  • Manufacturer Part Number:

    MIMXRT117FDVMAA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MAPBGA-289

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MIMXRT117FDVMAA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MIMXRT117FDVMAA is -40°C to 105°C.
  • The clock settings for the MIMXRT117FDVMAA can be configured using the Clock Control Module (CCM) registers. Refer to the MIMXRT117FDVMAA reference manual for detailed information on clock configuration.
  • The maximum frequency of the MIMXRT117FDVMAA's CPU is 1 GHz.
  • The USB interface on the MIMXRT117FDVMAA can be enabled by configuring the USB clock, enabling the USB PHY, and setting up the USB protocol stack. Refer to the MIMXRT117FDVMAA reference manual and USB specification for detailed information.
  • The power consumption of the MIMXRT117FDVMAA varies depending on the operating mode. In active mode, the power consumption is around 350 mA/MHz. In low-power mode, the power consumption is around 10 uA. Refer to the MIMXRT117FDVMAA datasheet for detailed power consumption information.
