Part Image

MIW03-24S033 - Minmax

Description: The MIW03 series is a range of high performance DC-DC converter modules, designed as a cost optimized replacement for the highly popular MIW1000 series. The converter features wide 2:1 input ranges and tight output voltage regulation. Excellent efficiency allows an operating temperature up to +70℃ at full load.

Download MIW03-24S033 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

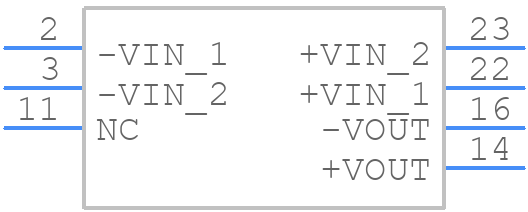

Symbol
MIW03-24S033 - Minmax - PCB symbol
click to zoom
PCB Footprints
MIW03-24S033 - Minmax PCB footprint - Other - Other - MIW03-24S033-2
click to zoom
3D Models
MIW03-24S033 - Minmax - 3D model - Other - MIW03-24S033-2
click to zoom

MIW03-24S033 Details

  • Manufacturer Part Number:

    MIW03-24S033

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-24/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P7

  • JESD-609 Code:

    e4

  • Length:

    31.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    2.475 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

MIW03-24S033 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the MIW03-24S033 can be found in the Minmax Technology Co Ltd application note AN-XXX. It provides guidelines for PCB design, component placement, and heat sink selection to ensure optimal performance and reliability.
  • The selection of input and output capacitors depends on the specific application requirements. Minmax Technology Co Ltd recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the input voltage. The capacitance value should be chosen based on the output current and ripple requirements. Refer to the datasheet and application notes for more information.
  • The MIW03-24S033 can tolerate a maximum input voltage deviation of ±10% of the nominal input voltage. Exceeding this limit may affect the module's performance, reliability, and lifespan.
  • The MIW03-24S033 is rated for operation up to 85°C ambient temperature. However, derating may be necessary for temperatures above 70°C. Consult the datasheet and application notes for more information on thermal derating and high-temperature operation.
  • The typical efficiency of the MIW03-24S033 is around 85-90% at full load. Efficiency may vary with load, and a detailed efficiency curve can be found in the datasheet or provided by Minmax Technology Co Ltd upon request.
