Description:The MIW06 series is a range of high performance DC-DC converter modules with 6W output power, featuring wide 2:1 input voltage ranges and fixed output voltage regulation. The product comes in a DIP-24 package with industry standard footprint. Excellent efficiency allows an operation temperature range of -40℃ to +85℃ (with derating).
The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good thermal conductivity. A thermal pad or heat sink can be used to dissipate heat, and the module should be mounted in a way that allows for good airflow.
To ensure EMC, use a metal enclosure, keep the module away from sensitive components, and use EMI filters or shielding if necessary. Also, follow proper PCB layout and grounding techniques, and consider using a common-mode choke or ferrite bead to reduce emissions.
The derating curve is typically provided by the manufacturer or can be calculated based on the thermal characteristics of the module. It shows the reduction in output power as a function of temperature. For the MIW06-12S05, the derating curve is usually around 2-3% per degree Celsius above 50°C, which means the output power will decrease as the temperature increases.
The MIW06-12S05 is designed to meet certain vibration and shock standards, but it's essential to consult the manufacturer's specifications and testing reports to ensure it meets the requirements of your specific application. Additional mechanical support or mounting may be necessary to ensure reliability in high-vibration or high-shock environments.
To troubleshoot issues, start by checking the input voltage, output load, and ambient temperature. Verify that the module is properly mounted and cooled. Use an oscilloscope to check the output voltage and current waveforms. Consult the datasheet and application notes for specific troubleshooting guidelines, and contact the manufacturer's support team if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW06-12S05 Overview

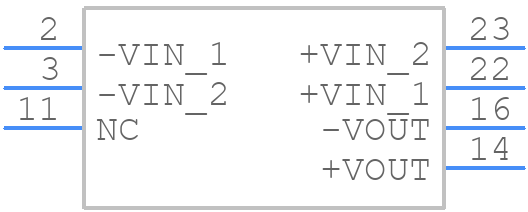

Use the download button to access the MIW06-12S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW06,
or try a keyword search, such as Power Supply Modules
