Description:The MIW06 series is a range of high performance DC-DC converter modules with 6W output power, featuring wide 2:1 input voltage ranges and fixed output voltage regulation. The product comes in a DIP-24 package with industry standard footprint. Excellent efficiency allows an operation temperature range of -40℃ to +85℃ (with derating).
The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and consider adding EMI filters or common-mode chokes to the input and output lines. Additionally, ensure that the converter is operated within its specified frequency range.
The derating curve is typically provided by the manufacturer or can be calculated based on the converter's thermal characteristics. It shows the reduction in output power as a function of temperature. At high temperatures, the converter's output power may need to be derated to prevent overheating and ensure reliable operation.
Yes, the MIW06-12S12 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault detection. Consult with the manufacturer or a qualified engineer for specific guidance.
The MIW06-12S12 is commonly used in industrial control systems, telecommunications, datacom, and medical devices, where high reliability, compact size, and low noise are essential. It's also suitable for other applications requiring a wide input range and high efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW06-12S12 Overview

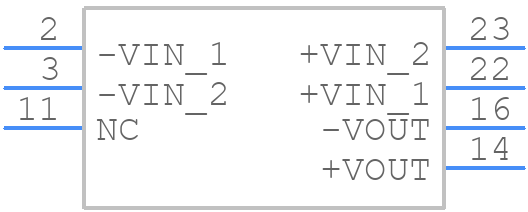

Use the download button to access the MIW06-12S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW06,
or try a keyword search, such as Power Supply Modules
