MIW1145 - Minmax

Description: The MIW1100 series is a range of isolated 3W DC-DC converter modules featuring fully regulated output voltages and wide input voltage ranges. The product comes in a DIP-24 plastic package with standard pinout. An excellent efficiency allows an operating temperature range of -40℃ to +85℃.

Download MIW1145 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

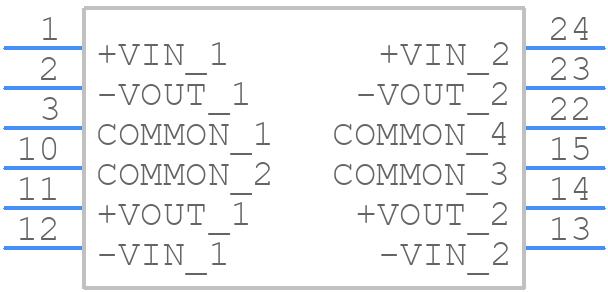

MIW1145 - Minmax - PCB symbol
click to zoom
PCB Footprints

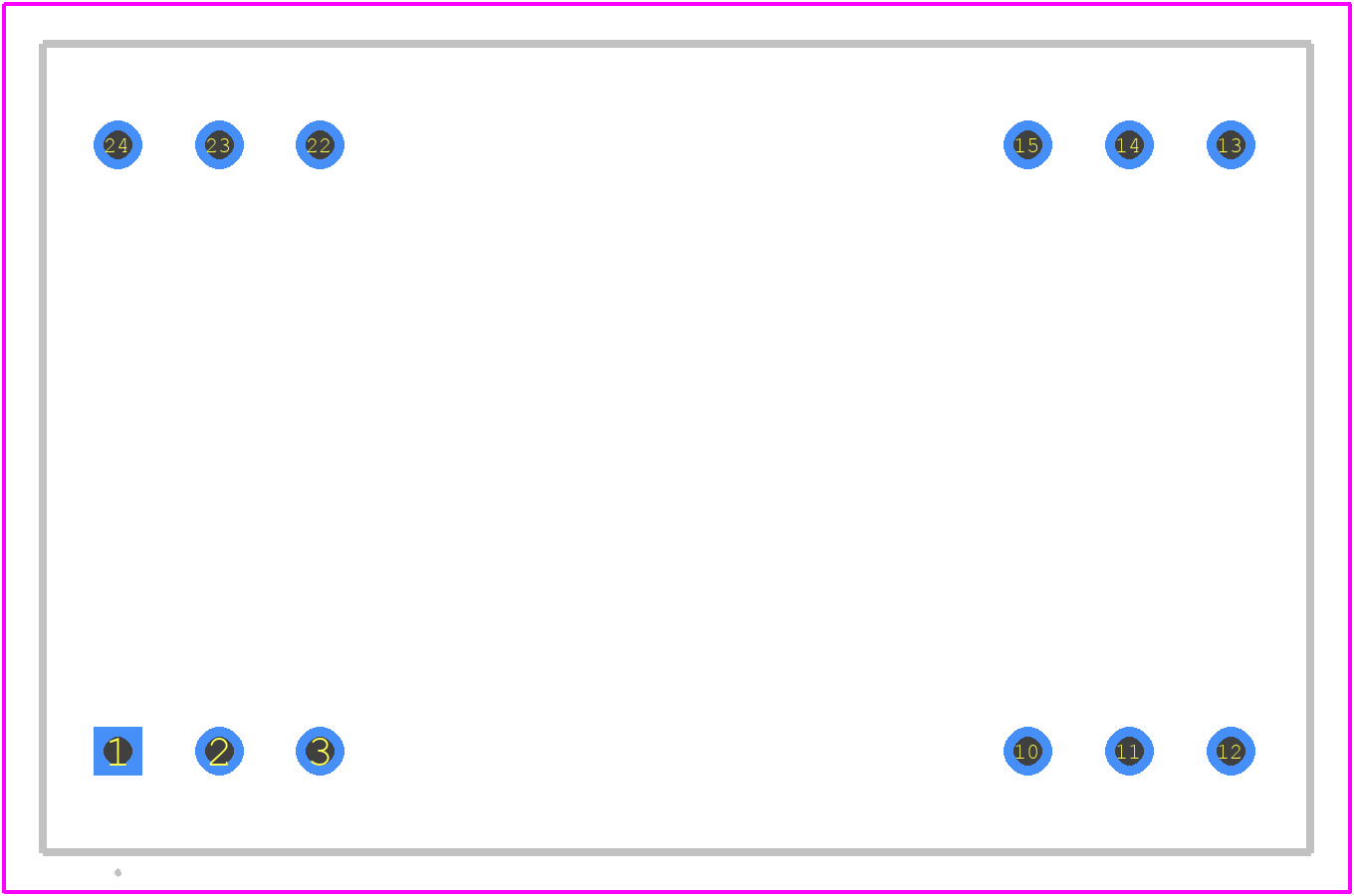

MIW1145 - Minmax PCB footprint - Other - Other - MIW1145
click to zoom
3D Models
MIW1145 - Minmax - 3D model - Other - MIW1145
click to zoom

MIW1145 Details

  • Manufacturer Part Number:

    MIW1145

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MIW1145 Overview

Use the download button to access the MIW1145 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW11, or try a keyword search, such as Power Supply Modules
