The recommended PCB layout for the MIW3012 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the MIW3012 operates within the specified temperature range, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, ensure good airflow around the device and avoid blocking the airflow.
The maximum allowed voltage deviation on the input of the MIW3012 is ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance, efficiency, or even cause damage.
Yes, the MIW3012 is designed to operate in high-vibration environments. However, it's essential to ensure the device is properly secured to the PCB and that the PCB is rigid enough to withstand the vibrations. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
To troubleshoot issues with the MIW3012, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Check for signs of overheating, and ensure the device is operating within the specified temperature range. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW3012 Overview

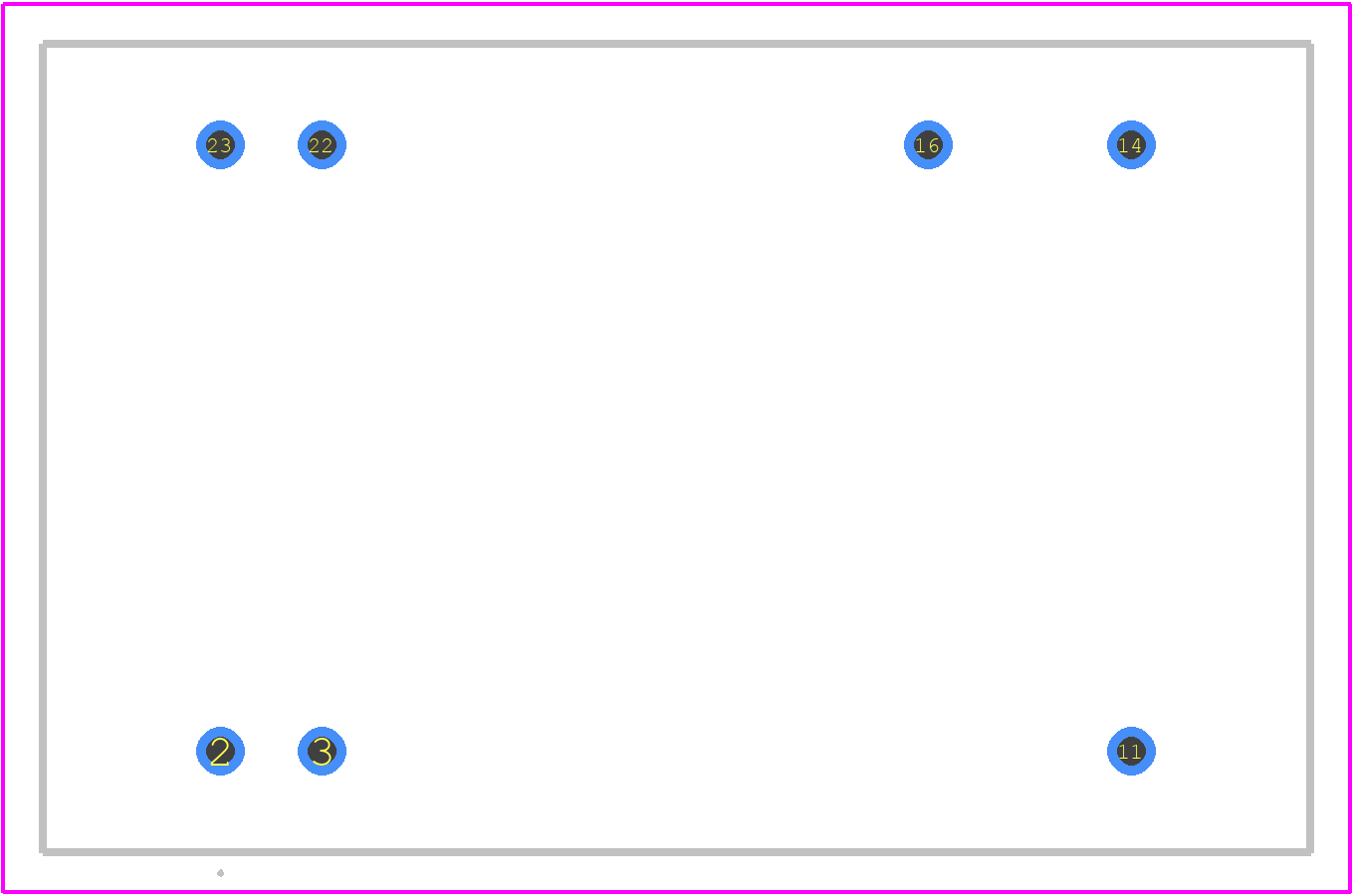

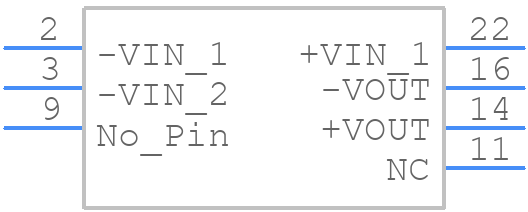

Use the download button to access the MIW3012 schematic symbol, PCB footprint, and 3D model.
