The recommended PCB layout for the MIW3014 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within the recommended operating temperature range.
The recommended input capacitor is a low-ESR ceramic capacitor with a value of 10uF to 22uF, and the recommended output capacitor is a low-ESR ceramic capacitor with a value of 10uF to 47uF. The capacitor selection should be based on the specific application requirements and operating conditions.
To troubleshoot common issues with the MIW3014, start by checking the input voltage, output load, and ambient temperature. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
The MIW3014 is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. It's essential to consult with Minmax Technology Co Ltd and conduct thorough testing and validation to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW3014 Overview

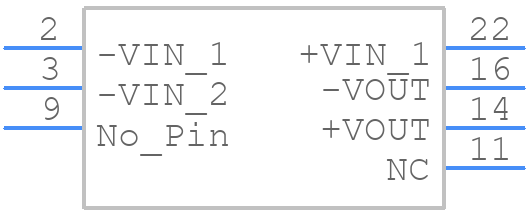

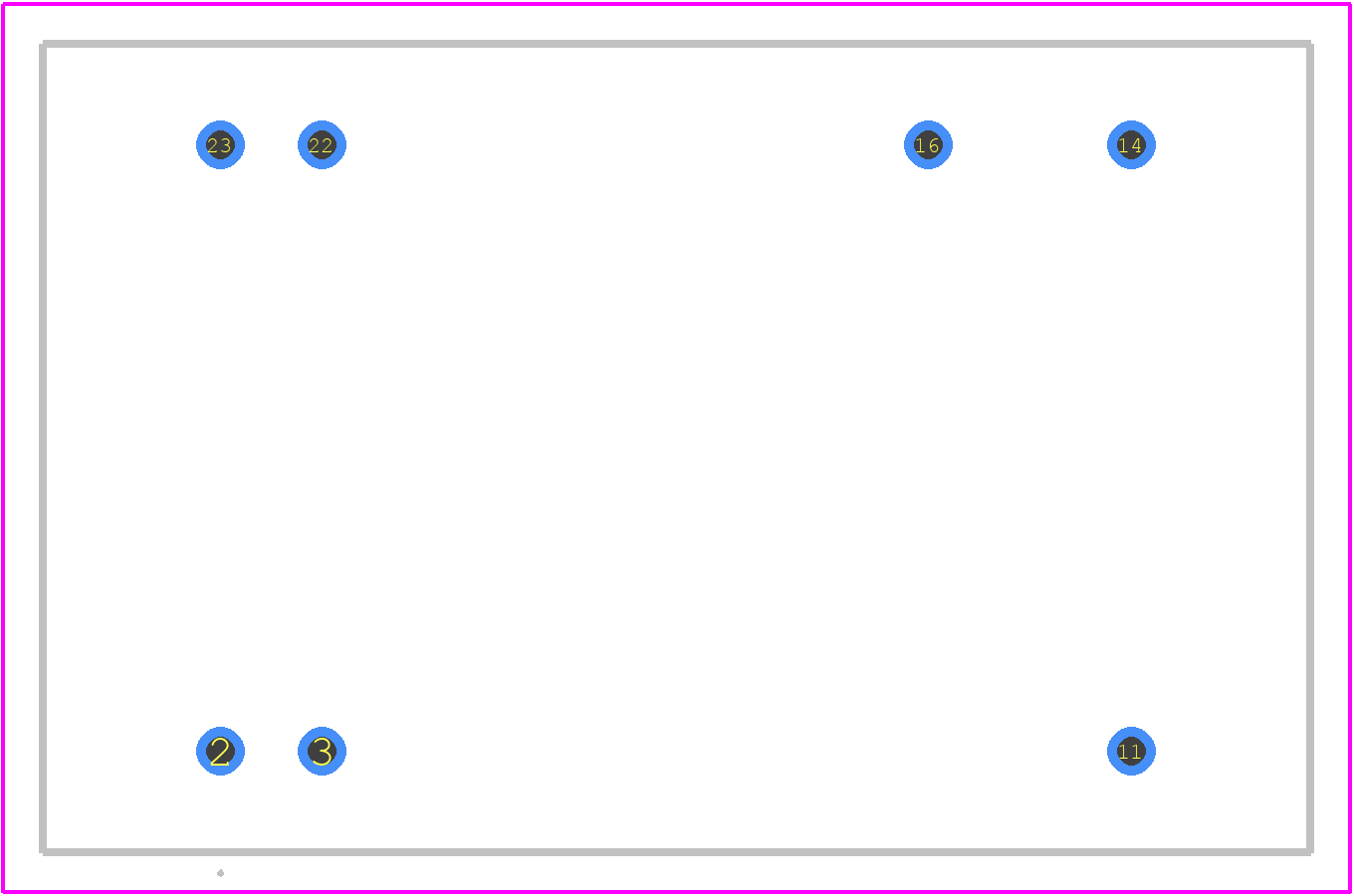

Use the download button to access the MIW3014 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW30,
or try a keyword search, such as Other Signal Circuits
