The recommended PCB layout involves placing the MIW3015 near the power source, using a solid ground plane, and keeping the input and output traces separate. For thermal management, a heat sink with a thermal resistance of 10°C/W or lower is recommended, along with a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
To ensure EMC, use a shielded enclosure, keep the MIW3015 away from sensitive components, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow the recommended PCB layout and use a ground plane to reduce electromagnetic radiation.
The derating curve for the MIW3015 is typically provided by Minmax Technology Co Ltd upon request. It shows the reduction in output power as a function of temperature, altitude, and other environmental factors. Engineers can use this curve to determine the maximum output power of the MIW3015 under specific operating conditions.
Yes, the MIW3015 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the overall system architecture. Engineers should ensure that the input and output connections are properly synchronized, and that the system can handle the increased power and heat generation.
The reliability and MTBF ratings for the MIW3015 are typically provided by Minmax Technology Co Ltd upon request. These ratings are based on accelerated life testing and can help engineers estimate the expected lifespan and failure rate of the device in their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIW3015 Overview

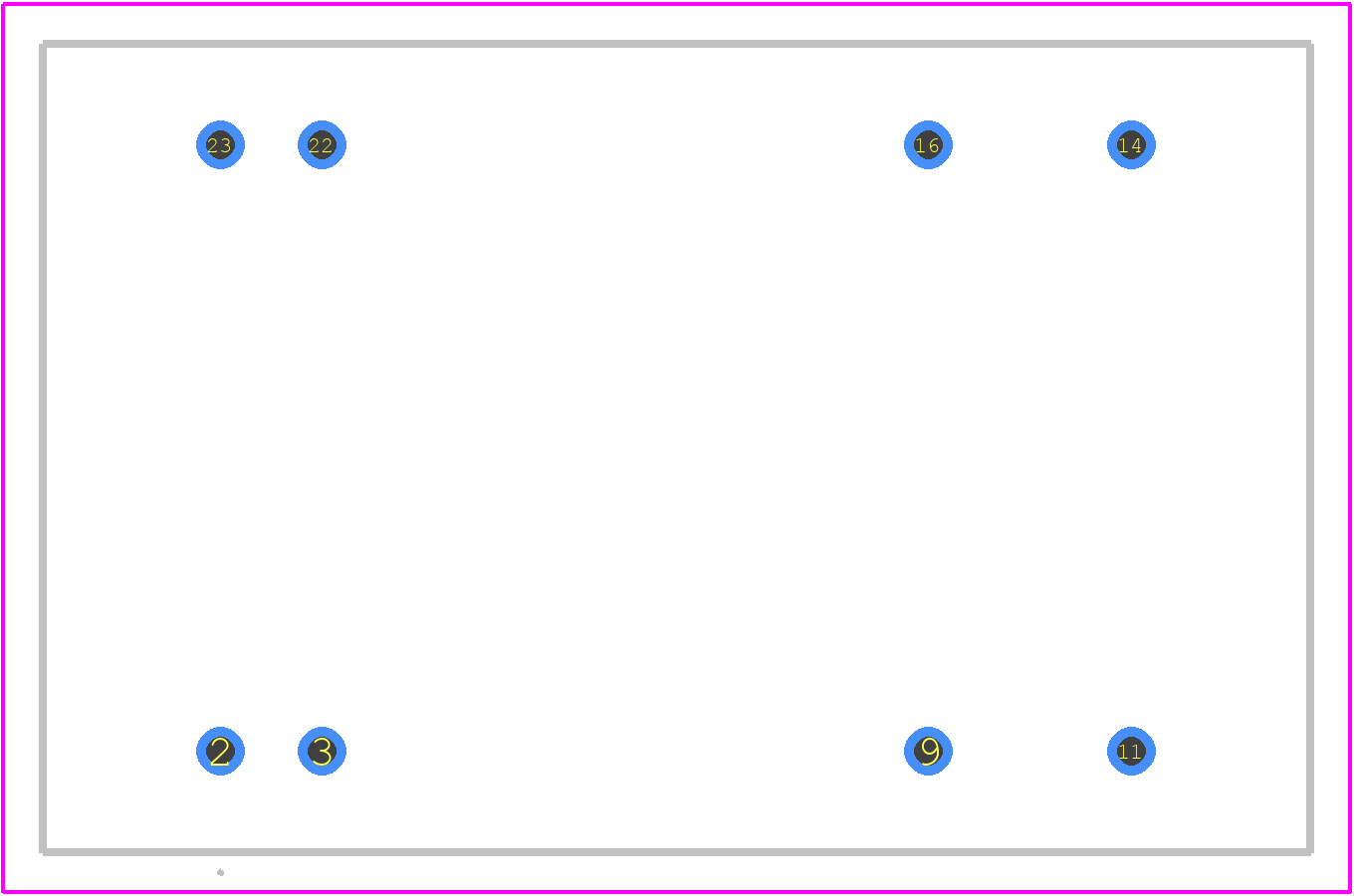

Use the download button to access the MIW3015 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIW30,
or try a keyword search, such as Other Signal Circuits
