MIW3016 - Minmax

Description: 5-6 Watts 2:1 Wide Input Range DC/DC Converter-1

Download MIW3016 Model
Schematic

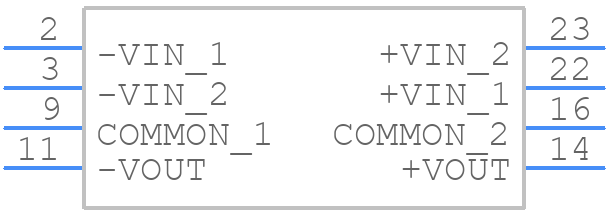

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MIW3016 - Minmax PCB footprint - Other - Other - MIW3016-2
click to zoom
3D Models
MIW3016 - Minmax  - 3D model - Other - MIW3016-2
click to zoom

MIW3016 Details

  • Manufacturer Part Number:

    MIW3016

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • YTEOL:

    3

  • Additional Feature:

    ADDITIONAL -12 VOLT OUTPUT ALSO AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    31.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

MIW3016 Frequently Asked Questions (FAQs)

  • Minmax recommends a PCB layout with a solid ground plane and thermal vias under the device to improve heat dissipation. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. Minmax also recommends derating the output power according to the ambient temperature.
  • According to Minmax, the maximum allowed voltage deviation on the input pins is ±10% of the nominal input voltage. Exceeding this limit may affect the device's performance, reliability, or even cause damage.
  • Yes, the MIW3016 can be used in a redundant or parallel configuration to achieve higher power ratings or improve system reliability. However, it's essential to follow proper design guidelines and ensure that the devices are properly synchronized and matched to avoid oscillations or other issues.
  • The typical start-up time for the MIW3016 is around 10-20 ms, depending on the input voltage and output load. This time may vary depending on the specific application and design.
