Description:The MIWI06 series is a range of high performance DC-DC converter modules with 6W output power, featuring ultra-wide 4:1 input voltage ranges and fixed output voltage regulation. The product comes in a DIP-24 package with industry standard footprint. Excellent efficiency allows an operation temperature range of -40℃ to +85℃.
The recommended PCB layout for the MIWI06-24S12 involves keeping the input and output capacitors close to the converter, using a solid ground plane, and minimizing the loop area of the input and output traces to reduce EMI.
To ensure reliable operation in high-temperature environments, it's essential to provide adequate airflow, use a heat sink if necessary, and follow the recommended derating guidelines for the converter's output power and ambient temperature.
The maximum allowable capacitance for the output filter capacitor is typically limited by the converter's stability and transient response. A general guideline is to keep the output capacitance below 10uF to ensure stable operation.
Yes, the MIWI06-24S12 can be used in a redundant or parallel configuration, but it's essential to follow the manufacturer's guidelines and recommendations for synchronization, current sharing, and fault detection to ensure reliable operation.
The typical efficiency of the MIWI06-24S12 varies depending on the load. At full load, the efficiency is typically around 85-90%, while at half load, it's around 80-85%. The efficiency may be lower at lighter loads due to the converter's standby power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MIWI06-24S12 Overview

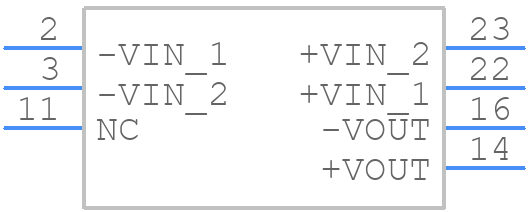

Use the download button to access the MIWI06-24S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MIWI0,
or try a keyword search, such as Power Supply Modules
