MJ11028 - onsemi

MJ11028 Details

• Manufacturer Part Number:

  MJ11028

• Part Life Cycle Code:

  Obsolete

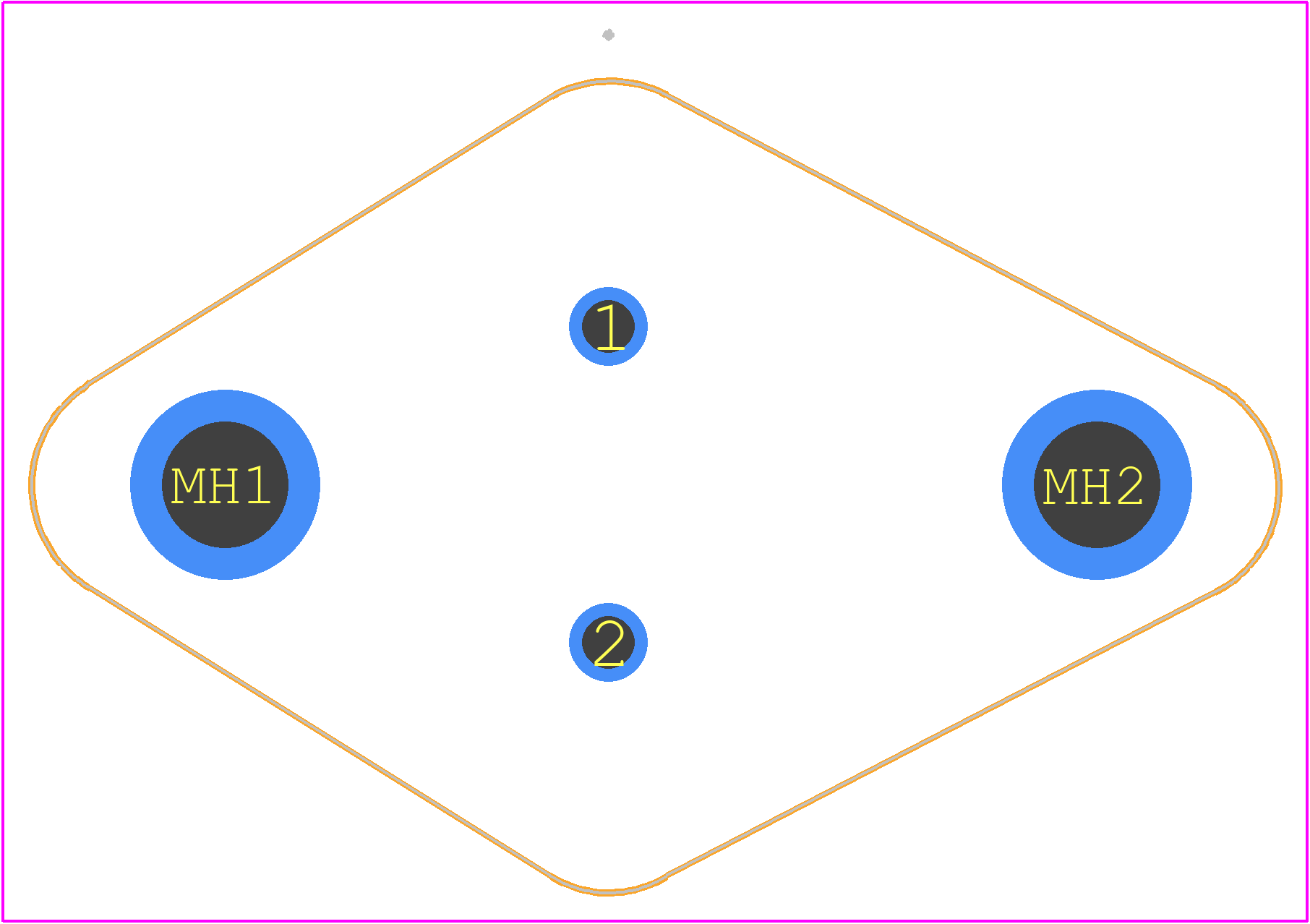

• Part Package Code:

  TO-3

• Pin Count:

  2

• Manufacturer Package Code:

  CASE 197A-05

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  0

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  50 A

• Collector-Emitter Voltage-Max:

  60 V

• Configuration:

  DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

• DC Current Gain-Min (hFE):

  400

• JEDEC-95 Code:

  TO-204AA

• JESD-30 Code:

  O-MBFM-P2

• JESD-609 Code:

  e0

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Package Body Material:

  METAL

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  235

• Polarity/Channel Type:

  NPN

• Power Dissipation-Max (Abs):

  300 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn80Pb20)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  AMPLIFIER

• Transistor Element Material:

  SILICON
