The maximum safe operating area (SOA) for the MJ15003 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general guideline, the SOA is typically limited by the device's thermal capabilities, and it's recommended to keep the device within the specified thermal boundaries to ensure reliable operation.
To ensure the MJ15003 is properly biased for linear operation, it's essential to follow the recommended biasing scheme outlined in the datasheet. This typically involves setting the base-emitter voltage (VBE) to around 0.7V and the collector-emitter voltage (VCE) to around 1-2V. Additionally, the base current should be limited to prevent overheating and ensure stable operation.
The recommended heatsink design for the MJ15003 depends on the specific application and operating conditions. However, as a general guideline, a heatsink with a thermal resistance of around 1-2°C/W is recommended. The heatsink should also be designed to provide good thermal contact with the device, and thermal interface materials (TIMs) can be used to improve heat transfer.
While the MJ15003 is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching characteristics, such as its rise and fall times, may not be optimized for high-frequency switching. Additionally, the device's maximum switching frequency should be limited to around 100 kHz to prevent overheating and ensure reliable operation.
To protect the MJ15003 from electrostatic discharge (ESD), it's essential to follow proper handling and storage procedures. This includes using anti-static wrist straps, mats, and packaging materials, as well as grounding all equipment and tools. Additionally, ESD protection devices, such as TVS diodes or ESD protection arrays, can be used to protect the device from ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ15003 Overview

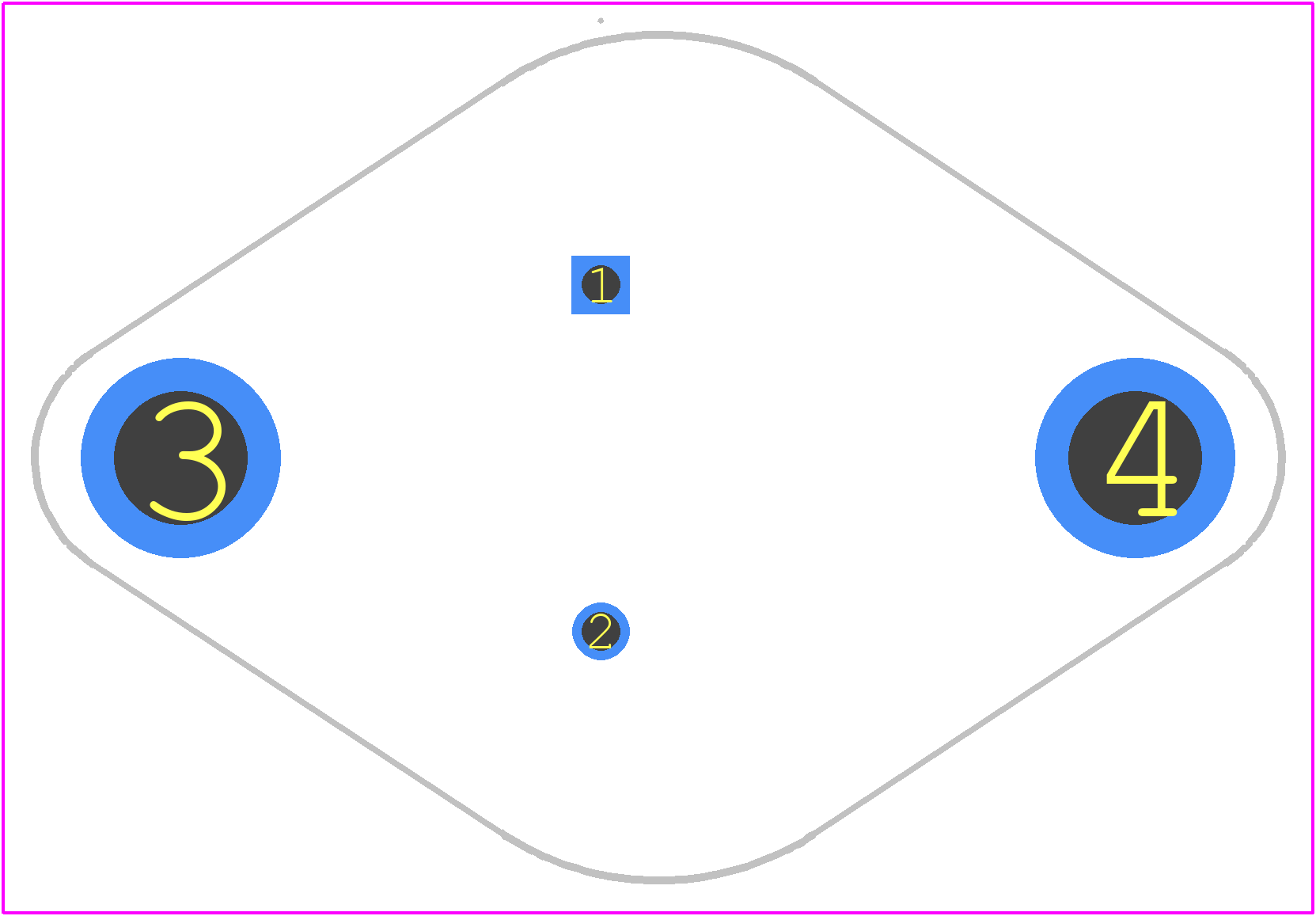

Use the download button to access the MJ15003 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ150,
or try a keyword search, such as Power Bipolar Transistors
