MJ15003 - onsemi

Description: Bipolar Transistors - BJT 20A 140V 250W NPN

Download MJ15003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

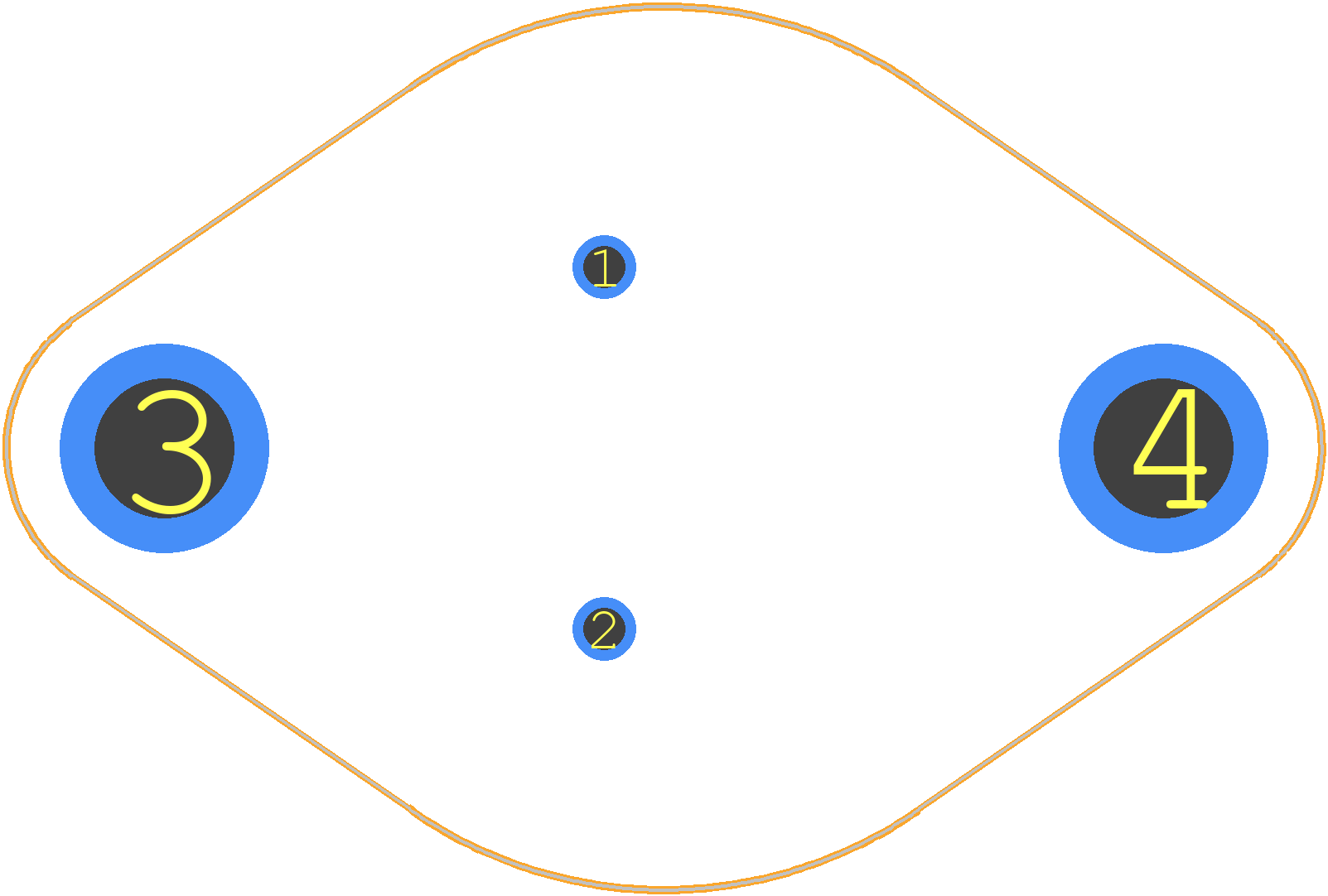

MJ15003 - onsemi PCB footprint - Other - Other - TO-204 (TO-3)
click to zoom
3D Models
MJ15003 - onsemi  - 3D model - Other - TO-204 (TO-3)
click to zoom

MJ15003 Details

  • Manufacturer Part Number:

    MJ15003

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-3

  • Package Description:

    CASE 1-07, TO-3, 2 PIN

  • Pin Count:

    2

  • Manufacturer Package Code:

    CASE 1-07

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    20 A

  • Collector-Emitter Voltage-Max:

    140 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    25

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    235

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    250 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    2 MHz

MJ15003 Frequently Asked Questions (FAQs)

  • The maximum safe operating area (SOA) for the MJ15003 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal and electrical characteristics. A general rule of thumb is to limit the device to a maximum power dissipation of 100W, with a maximum current of 15A and a maximum voltage of 100V.
  • To ensure the MJ15003 is properly biased for linear operation, you should provide a stable voltage supply, ensure the base-emitter voltage is within the recommended range (typically 0.6-0.8V), and provide a sufficient base current to maintain a low saturation voltage. Additionally, consider using a biasing network, such as a voltage divider or a current mirror, to stabilize the base voltage and current.
  • The recommended heatsink design for the MJ15003 depends on the specific application and operating conditions. However, as a general guideline, a heatsink with a thermal resistance of 1-2°C/W is recommended. The heatsink should be designed to provide good thermal contact with the device, and should be mounted using a suitable thermal interface material. Additionally, consider using a thermal pad or thermal tape to improve heat transfer.
  • Yes, the MJ15003 can be used as a switch, but it is not optimized for switching applications. The device has a relatively high saturation voltage (typically 2-3V) and a moderate switching speed (typically 10-20ns). Additionally, the device may exhibit some switching losses, especially at high frequencies. Therefore, it is recommended to use the MJ15003 as a linear amplifier or driver, rather than a switch.
  • To protect the MJ15003 from electrostatic discharge (ESD), follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and workbenches. Additionally, consider using ESD protection devices, such as diodes or resistors, in the circuit design to absorb or divert ESD pulses. Finally, ensure that the device is properly grounded and that all connections are made through a low-impedance path.
