MJ15023 - Multicomp Pro

Description: Bipolar (BJT) Transistor PNP 200 V 16 A 4MHz 250 W Through Hole TO-3

Download MJ15023 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

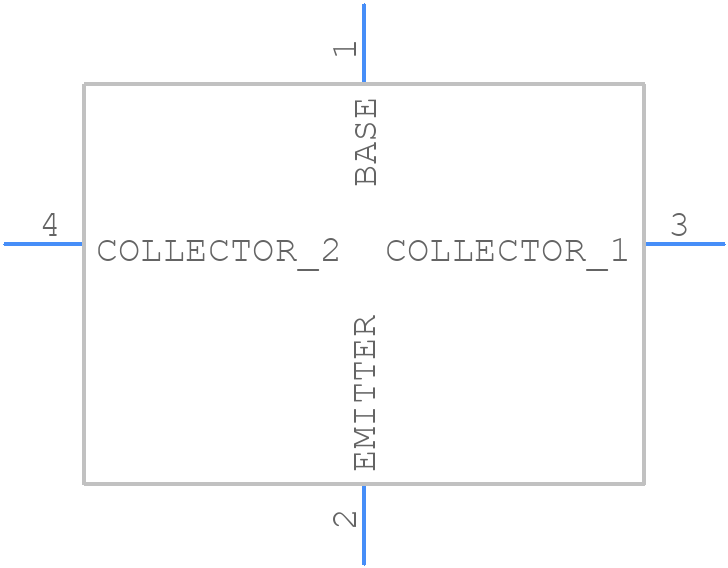

Symbol
MJ15023 - Multicomp Pro - PCB symbol
click to zoom

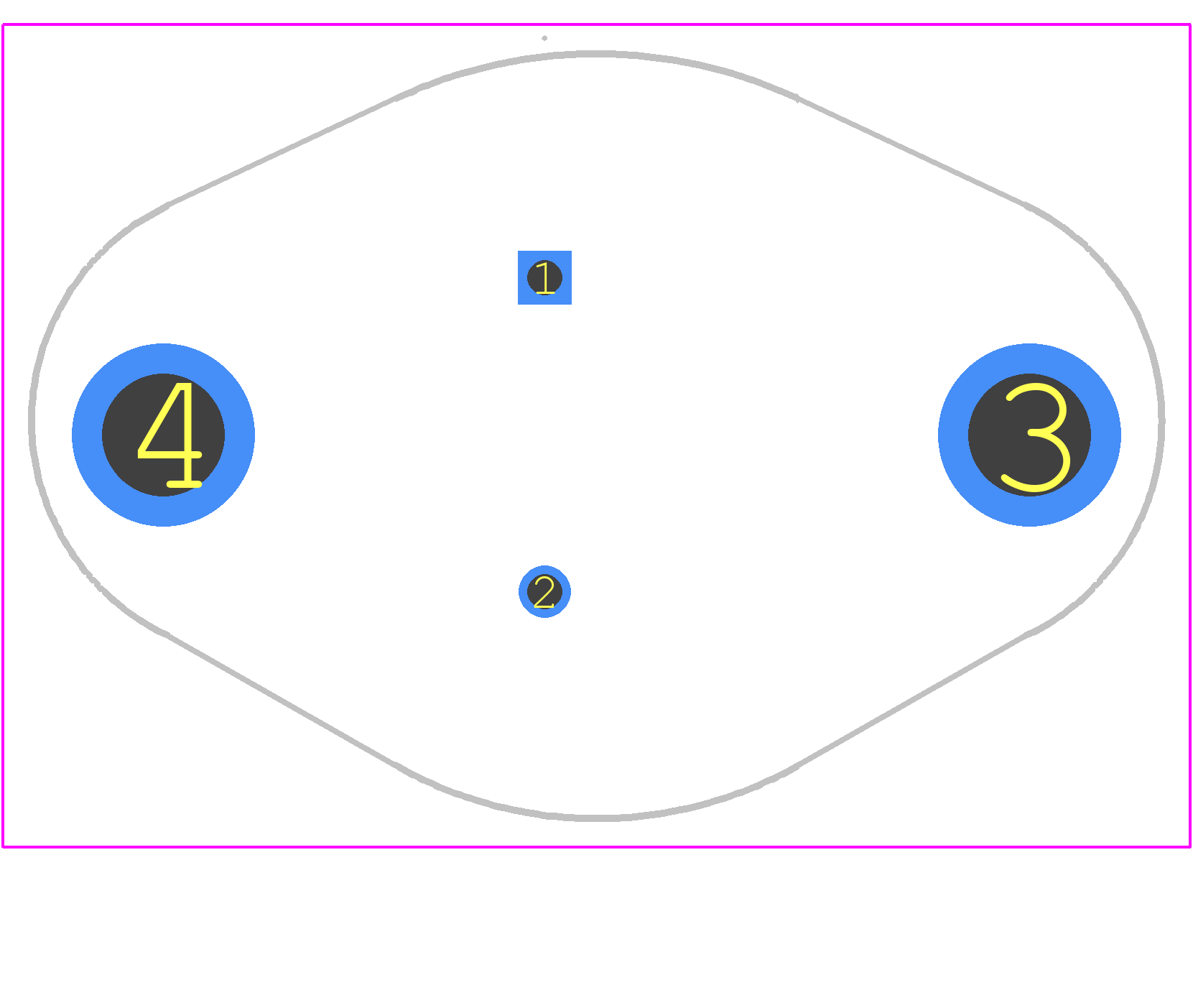

PCB Footprints
MJ15023 - Multicomp Pro PCB footprint - Other - Other - TO-3_2023
click to zoom
3D Models
MJ15023 - Multicomp Pro - 3D model - Other - TO-3_2023
click to zoom

MJ15023 Details

  • Manufacturer Part Number:

    MJ15023

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    16 A

  • Collector-Emitter Voltage-Max:

    200 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    NO

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    4 MHz

MJ15023 Frequently Asked Questions (FAQs)

  • The maximum safe operating temperature for the MJ15023 is 150°C, but it's recommended to operate it at a maximum of 120°C to ensure reliability and longevity.
  • While the MJ15023 can be used as a switch, it's not recommended for high-frequency applications (>100 kHz) due to its relatively high switching time (around 1.5 μs) and potential for oscillation.
  • To ensure proper biasing for linear amplifier applications, use a voltage divider network to set the base voltage, and ensure the collector-emitter voltage is within the recommended range (typically 10-20 V). Also, consider using a biasing resistor to stabilize the base voltage.
  • The recommended heatsink for the MJ15023 depends on the specific application and power dissipation requirements. However, a general-purpose heatsink with a thermal resistance of around 10-20°C/W is suitable for most applications.
  • Yes, the MJ15023 can be used in a push-pull amplifier configuration, but it's essential to ensure proper biasing, matching, and thermal management to prevent overheating and oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MJ15023 Overview

Use the download button to access the MJ15023 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ150, or try a keyword search, such as Power Bipolar Transistors
