The maximum safe operating area (SOA) for the MJ15024G is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be assumed to be within the boundaries of the maximum voltage, current, and power dissipation ratings.
To ensure the MJ15024G is properly biased for linear operation, the base-emitter voltage (Vbe) should be set between 0.6V to 0.8V, and the collector-emitter voltage (Vce) should be set to at least 1V to 2V above the emitter voltage. Additionally, the base current should be limited to prevent saturation.
The recommended heatsink design for the MJ15024G depends on the specific application and power dissipation requirements. However, a general guideline is to use a heatsink with a thermal resistance of less than 1°C/W, and to ensure good thermal contact between the transistor and heatsink using a thermal interface material.
While the MJ15024G is primarily designed for linear applications, it can be used in switching applications with some caution. However, the transistor's switching characteristics, such as turn-on and turn-off times, may not be optimized for high-frequency switching. Additionally, the device's maximum switching frequency should be derated based on the application's specific requirements.
To protect the MJ15024G from electrostatic discharge (ESD), it is recommended to handle the device with anti-static precautions, such as using an anti-static wrist strap or mat. Additionally, the device should be stored in anti-static packaging, and ESD protection devices, such as TVS diodes, can be used in the circuit design to protect the transistor from ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ15024G Overview

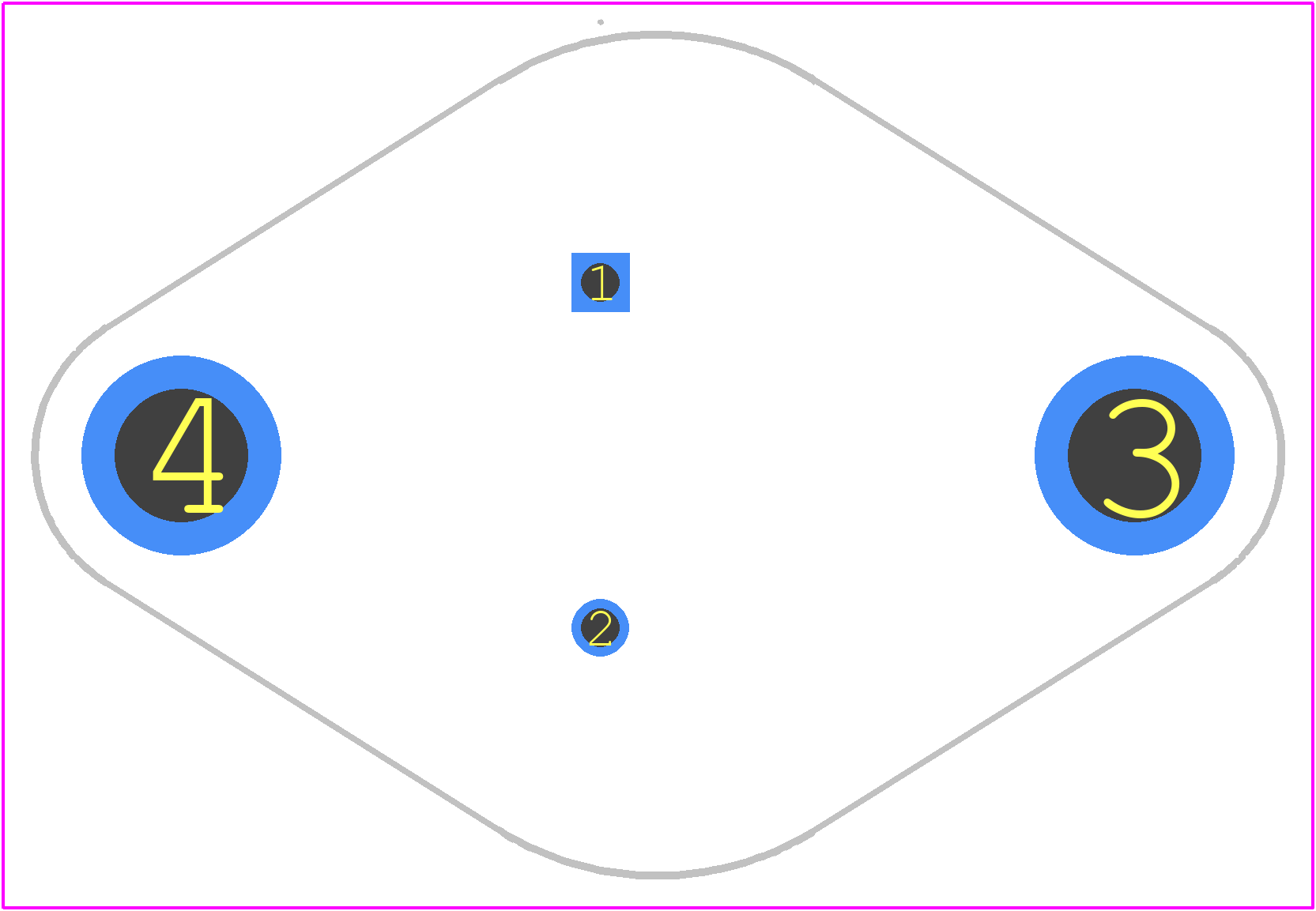

Use the download button to access the MJ15024G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ150,
or try a keyword search, such as Power Bipolar Transistors
