A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
The device has internal ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the PCB has ESD protection components, such as TVS diodes.
Yes, the MJ21193G is qualified for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions, and consider additional testing and validation for your specific application.
Use a systematic approach to troubleshoot: check the power supply, verify the input signals, and monitor the output. Use oscilloscopes or logic analyzers to debug the circuit. Consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ21193G Overview

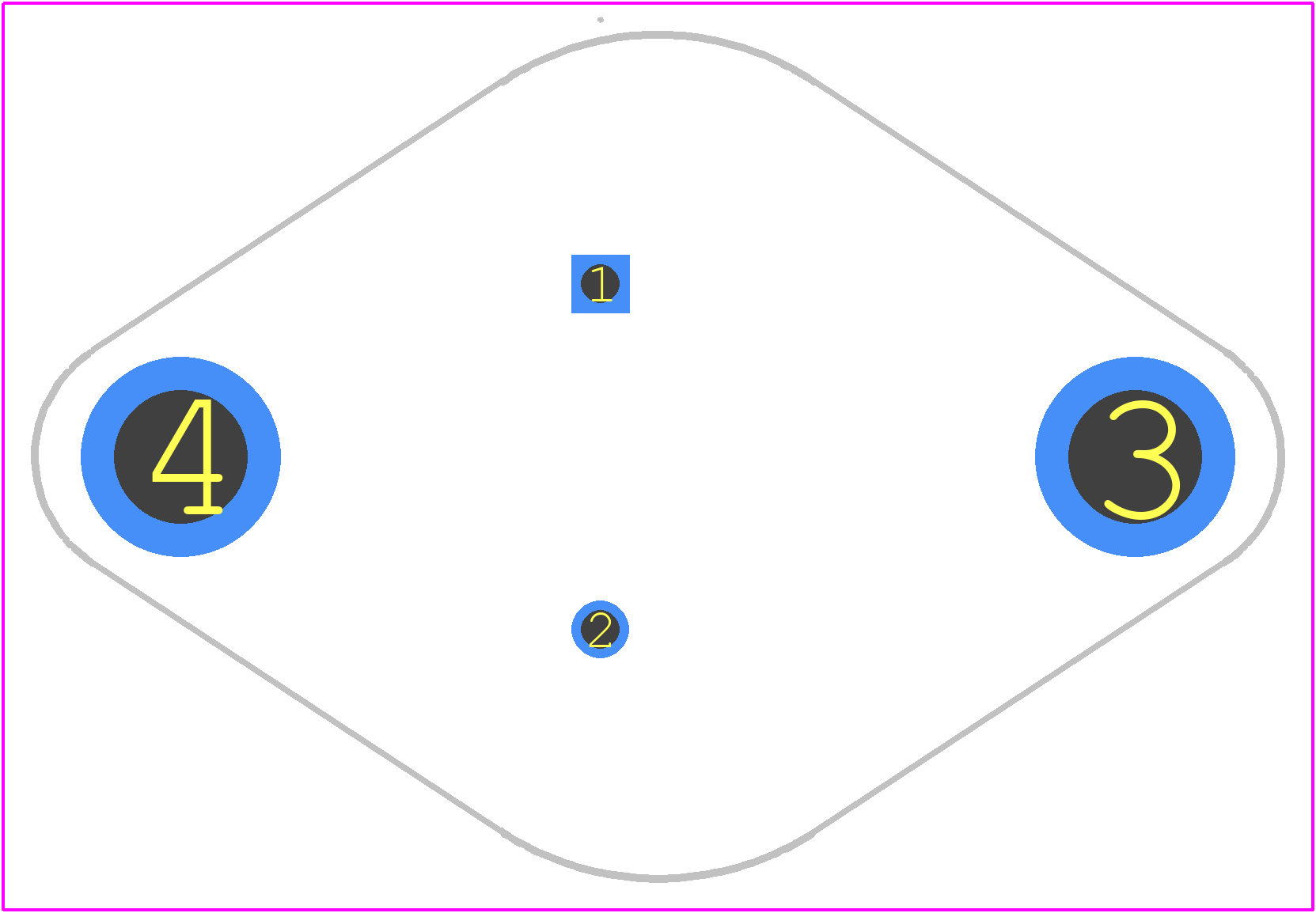

Use the download button to access the MJ21193G schematic symbol, PCB footprint, and 3D model.
