The maximum safe operating area (SOA) for the MJ2955 is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general rule, it's recommended to keep the device within the SOA to prevent thermal runaway and ensure reliable operation.
To ensure the MJ2955 is properly biased for linear operation, you should ensure that the base-emitter voltage (VBE) is within the recommended range (typically around 0.7V) and that the collector-emitter voltage (VCE) is sufficient to maintain a linear operating region. You can use a voltage divider or a current source to set the base voltage and ensure the transistor is operating within its linear region.
The recommended storage temperature for the MJ2955 is typically between -40°C to 150°C. It's essential to store the device within this temperature range to prevent damage and ensure reliable operation.
While the MJ2955 is primarily designed for linear applications, it can be used in switching applications with some caution. However, you should ensure that the device is properly biased and that the switching frequency is within the recommended range to prevent overheating and ensure reliable operation.
The recommended PCB layout for the MJ2955 involves keeping the leads as short as possible, using a ground plane to reduce thermal resistance, and ensuring good thermal conduction to the heat sink (if used). You should also minimize the distance between the transistor and the heat sink to ensure efficient heat transfer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MJ2955 Overview

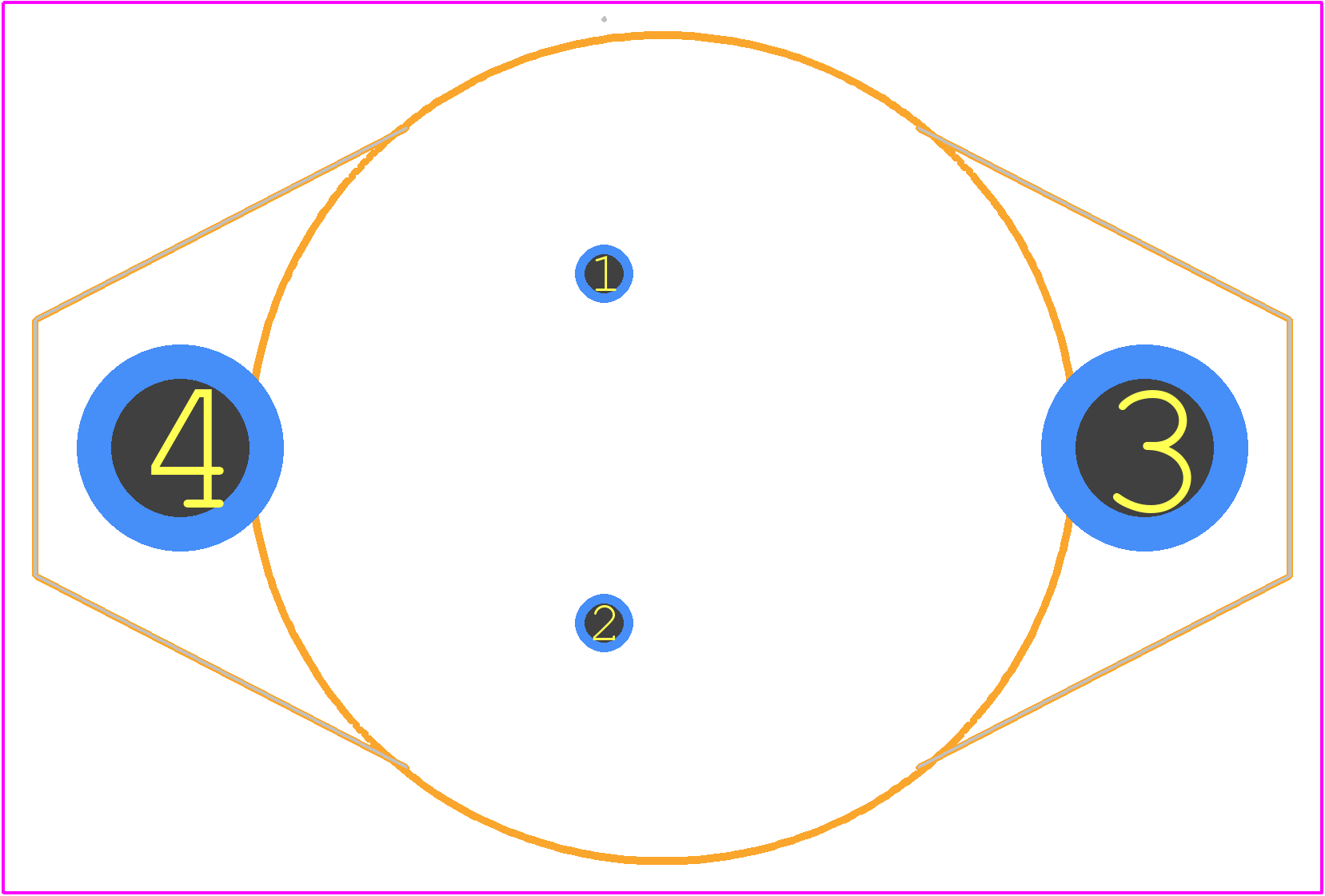

Use the download button to access the MJ2955 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ295,
or try a keyword search, such as Power Bipolar Transistors
