- Part Number MJ2955
- Manufacturer Multicomp Pro
- Pin Count 4
- Part Category Transistor BJT PNP
- Package Category Other

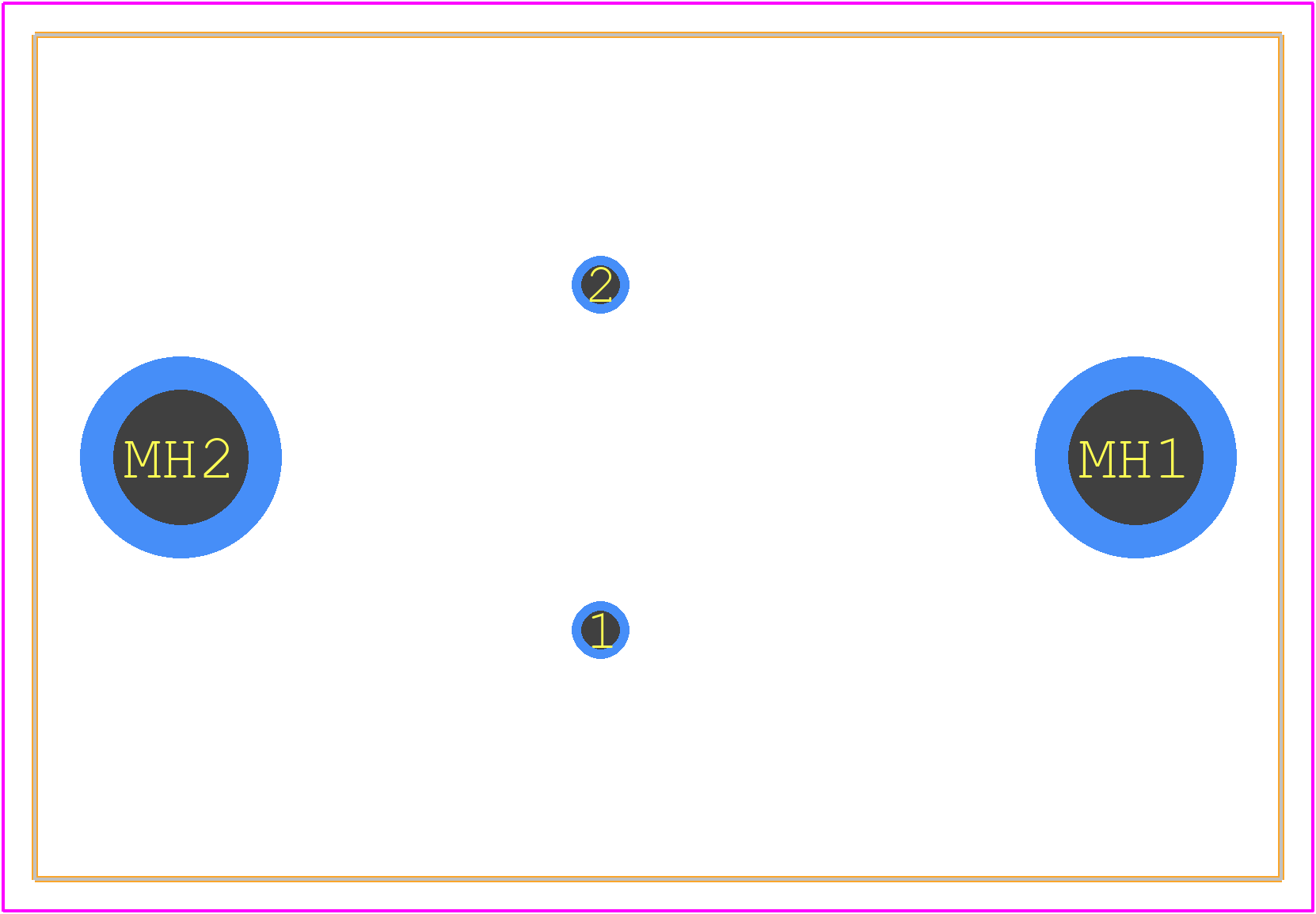

- Footprint Name Other - MJ2955-1
- Released Date Jan 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MJ2955 Details
-
Manufacturer Part Number:
MJ2955
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
SPC Multicomp
-
YTEOL:
4
-
Case Connection:
COLLECTOR
-
Collector Current-Max (IC):
15 A
-
Collector-Emitter Voltage-Max:
60 V
-
Configuration:
SINGLE
-
DC Current Gain-Min (hFE):
5
-
JEDEC-95 Code:
TO-3
MJ2955 Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the MJ2955 is 35V, but it's recommended to keep it below 30V for reliable operation.
-
To ensure stability, a minimum output capacitance of 1uF is recommended, and the ESR (Equivalent Series Resistance) of the capacitor should be less than 5 ohms.
-
The MJ2955 can supply a maximum current of 1A, but it's recommended to keep it below 0.8A for reliable operation and to prevent overheating.
-
To protect the MJ2955 from overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the ambient temperature below 70°C.
-
No, the MJ2955 is a linear voltage regulator and is not suitable for use in switching regulator applications. It's designed for use in linear power supplies and battery-powered devices.
