MJ2955 - STMicroelectronics

Description: Complementary power transistors TRANSISTOR, PNP, 60V, 15A, TO-3, -65 to 200 °C

Download MJ2955 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJ2955 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

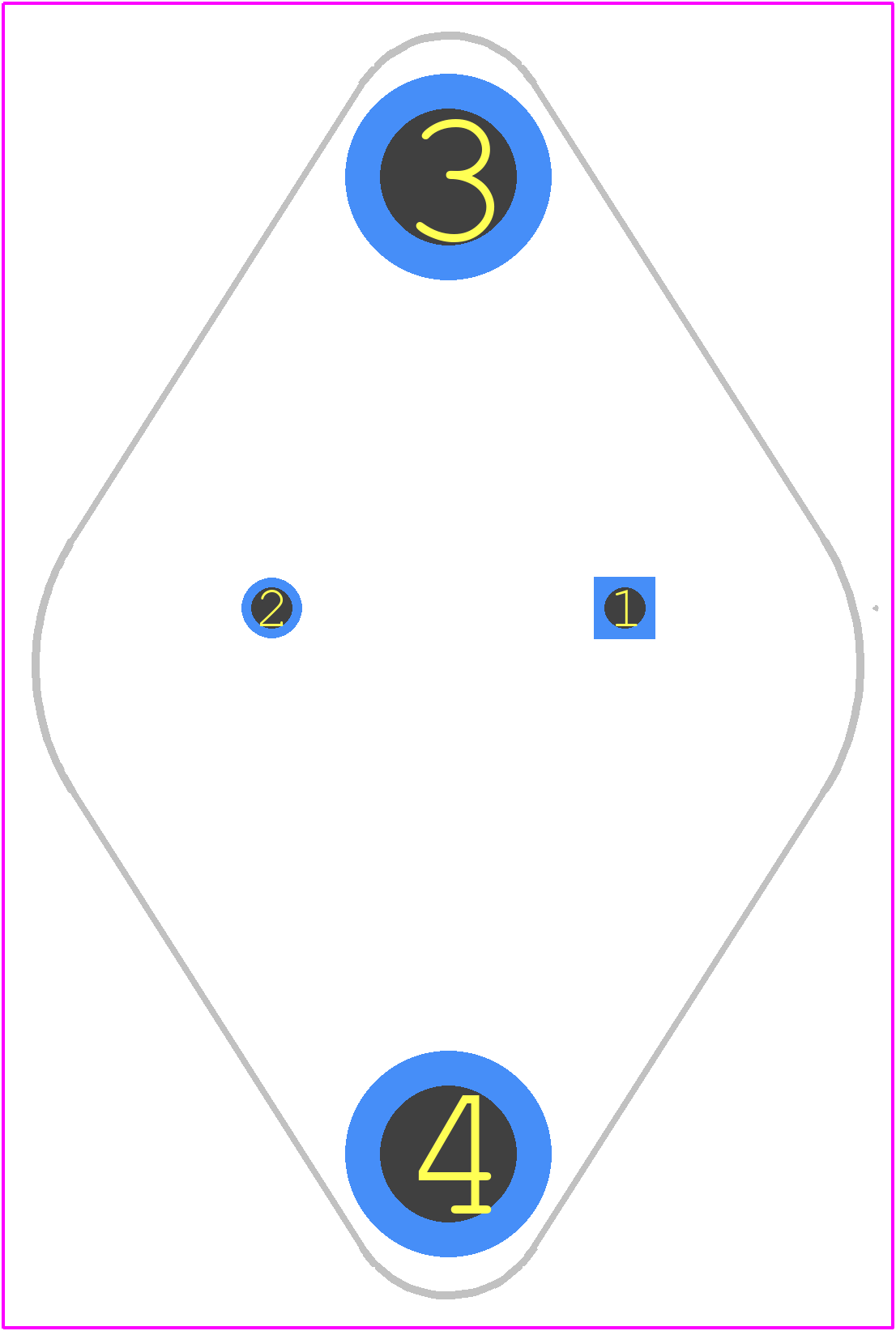

MJ2955 - STMicroelectronics PCB footprint - Other - Other - TO-3_2026
click to zoom
3D Models
MJ2955 - STMicroelectronics - 3D model - Other - TO-3_2026
click to zoom

MJ2955 Details

  • Manufacturer Part Number:

    MJ2955

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-204AA

  • Package Description:

    ROHS COMPLIANT PACKAGE-2

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    PNP

  • Power Dissipation Ambient-Max:

    150 W

  • Power Dissipation-Max (Abs):

    115 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    3 MHz

  • VCEsat-Max:

    3 V

MJ2955 Frequently Asked Questions (FAQs)

  • The MJ2955 can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 125°C for optimal performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.75V and 18V, and the GND pin to a solid ground plane. Also, decouple the VCC pin with a 10uF capacitor to reduce noise and ensure stability.
  • The MJ2955 has a maximum current rating of 3A, but it's recommended to keep the current below 2A for optimal performance and to prevent overheating.
  • Use a voltage regulator or a voltage limiter to prevent overvoltage, and consider adding a current limiter or a fuse to prevent overcurrent. Also, ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the MJ2955 can be used in switching power supply applications, but it's essential to ensure proper snubbering and filtering to prevent voltage spikes and oscillations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MJ2955 Overview

Use the download button to access the MJ2955 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ295, or try a keyword search, such as Power Bipolar Transistors
