MJ2955G - onsemi

Description: Bipolar (BJT) Transistor PNP 60 V 15 A 2.5MHz 115 W Through Hole TO-204 (TO-3) , 15 A , 60 V , -65°C ~ 200°C

Download MJ2955G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MJ2955G - onsemi - PCB symbol
click to zoom
PCB Footprints

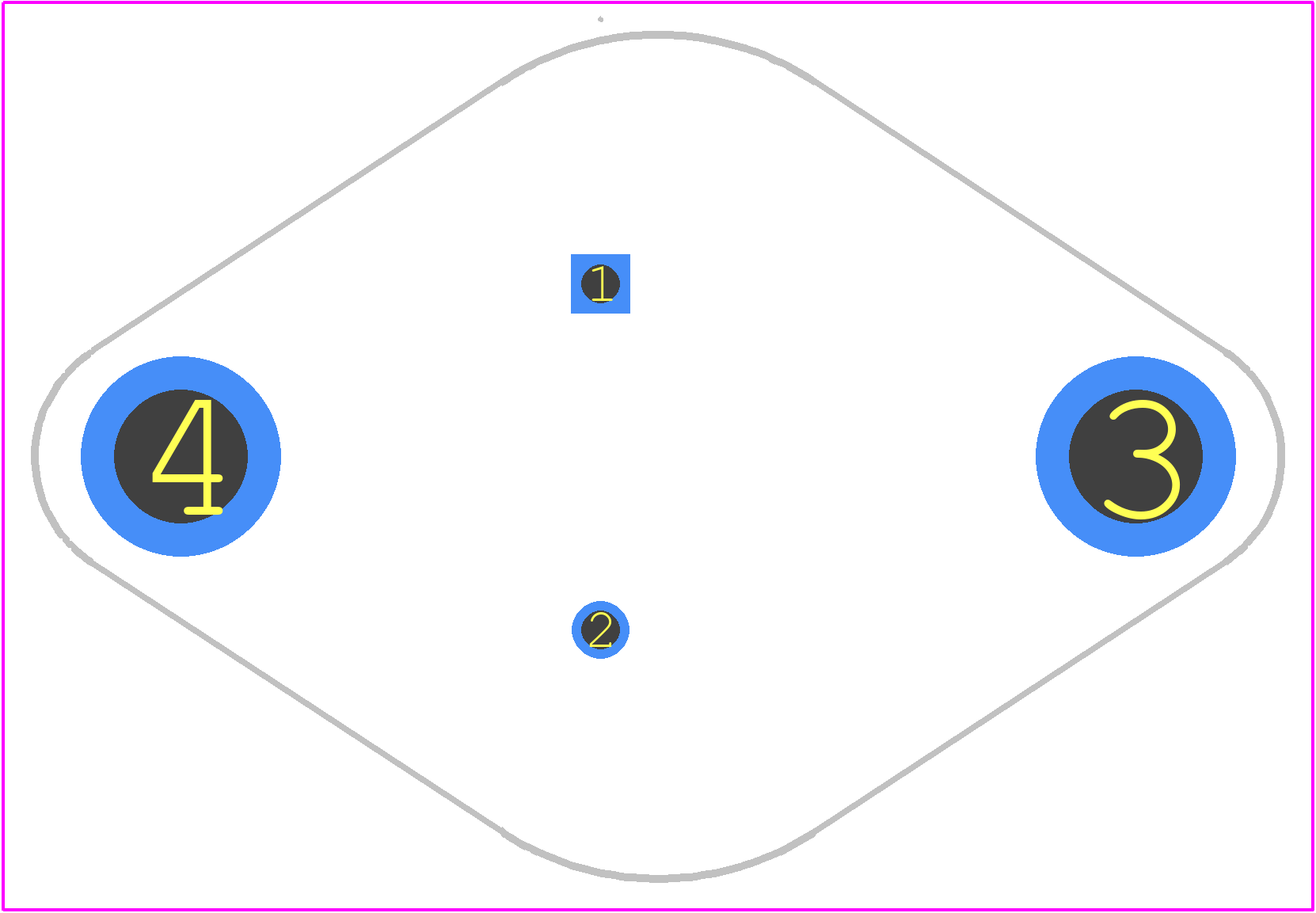

MJ2955G - onsemi PCB footprint - Other - Other - TO−204 (TO−3)CASE 1−07 ISSUE Z_2025-1.5
click to zoom
3D Models
MJ2955G - onsemi - 3D model - Other - TO−204 (TO−3)CASE 1−07 ISSUE Z_2025-1.5
click to zoom

MJ2955G Details

  • Manufacturer Part Number:

    MJ2955G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-204 (TO-3)

  • Package Description:

    LEAD FREE, CASE 1-07, TO-3, 2 PIN

  • Pin Count:

    2

  • Manufacturer Package Code:

    1-07

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    5

  • JEDEC-95 Code:

    TO-204AA

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    115 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    2.5 MHz

MJ2955G Frequently Asked Questions (FAQs)

  • The MJ2955G can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C for reliable operation.
  • To ensure proper biasing, connect the base of the transistor to a voltage source through a resistor (Rb) and a capacitor (Cb) in parallel. The value of Rb should be chosen to provide a base current of around 1-2 mA, and Cb should be around 100-220 nF to filter out noise.
  • To minimize thermal resistance, use a copper pour on the PCB to create a thermal pad under the transistor. Ensure the thermal pad is connected to a heat sink or a metal plate to dissipate heat efficiently. Keep the thermal pad as close to the transistor as possible and use thermal vias to connect it to the heat sink.
  • To protect the MJ2955G from EOS, use a transient voltage suppressor (TVS) diode or a zener diode in parallel with the transistor to clamp voltage spikes. Additionally, use a fuse or a current-limiting resistor in series with the transistor to prevent excessive current.
  • Store the MJ2955G in a dry, cool place away from direct sunlight. Handle the transistor by the body, avoiding touching the leads or die. Use an anti-static wrist strap or mat when handling the transistor to prevent electrostatic discharge (ESD) damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MJ2955G Overview

Use the download button to access the MJ2955G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ295, or try a keyword search, such as Power Bipolar Transistors
