- Part Number MJ3001
- Manufacturer Multicomp Pro
- Pin Count 4
- Part Category Transistor BJT NPN
- Package Category Other

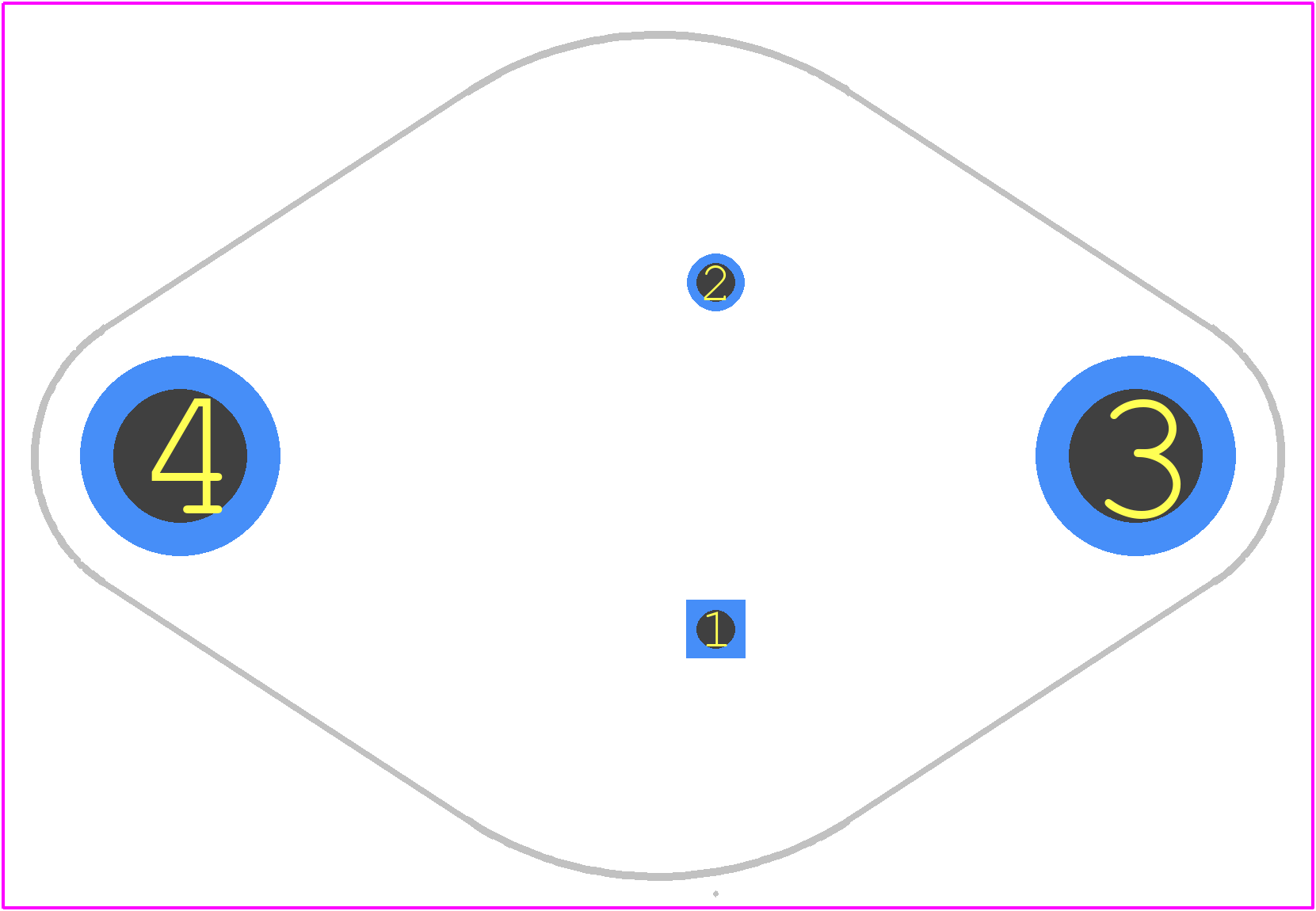

- Footprint Name Other - TO-3_2024-1
- Released Date Jan 29, 2024
- Last Modified Date Jan 30, 2024 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MJ3001 Details
-
Manufacturer Part Number:
MJ3001
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
SPC Multicomp
-
YTEOL:
4
-
Case Connection:
COLLECTOR
-
Collector Current-Max (IC):
10 A
-
Collector-Emitter Voltage-Max:
80 V
-
Configuration:
DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
-
DC Current Gain-Min (hFE):
1000
-
JEDEC-95 Code:
TO-3
MJ3001 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the MJ3001 is -40°C to 125°C.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Additionally, decouple the VCC pin with a 0.1uF capacitor to reduce noise.
-
The maximum current rating for the MJ3001's output pins is 20mA. Exceeding this rating may cause damage to the device.
-
While the MJ3001 can operate at high frequencies, its performance may degrade above 100kHz. For high-frequency applications, consider using a more specialized device or consulting with an application engineer.
-
To protect the MJ3001 from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MJ3001 Overview

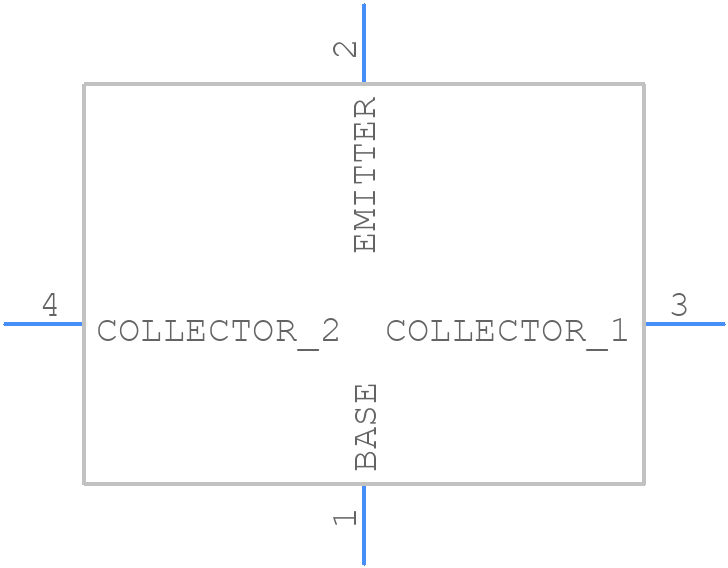

Use the download button to access the MJ3001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MJ300,
or try a keyword search, such as Power Bipolar Transistors
