MJ3001 - STMicroelectronics

MJ3001 Details

• Manufacturer Part Number:

  MJ3001

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

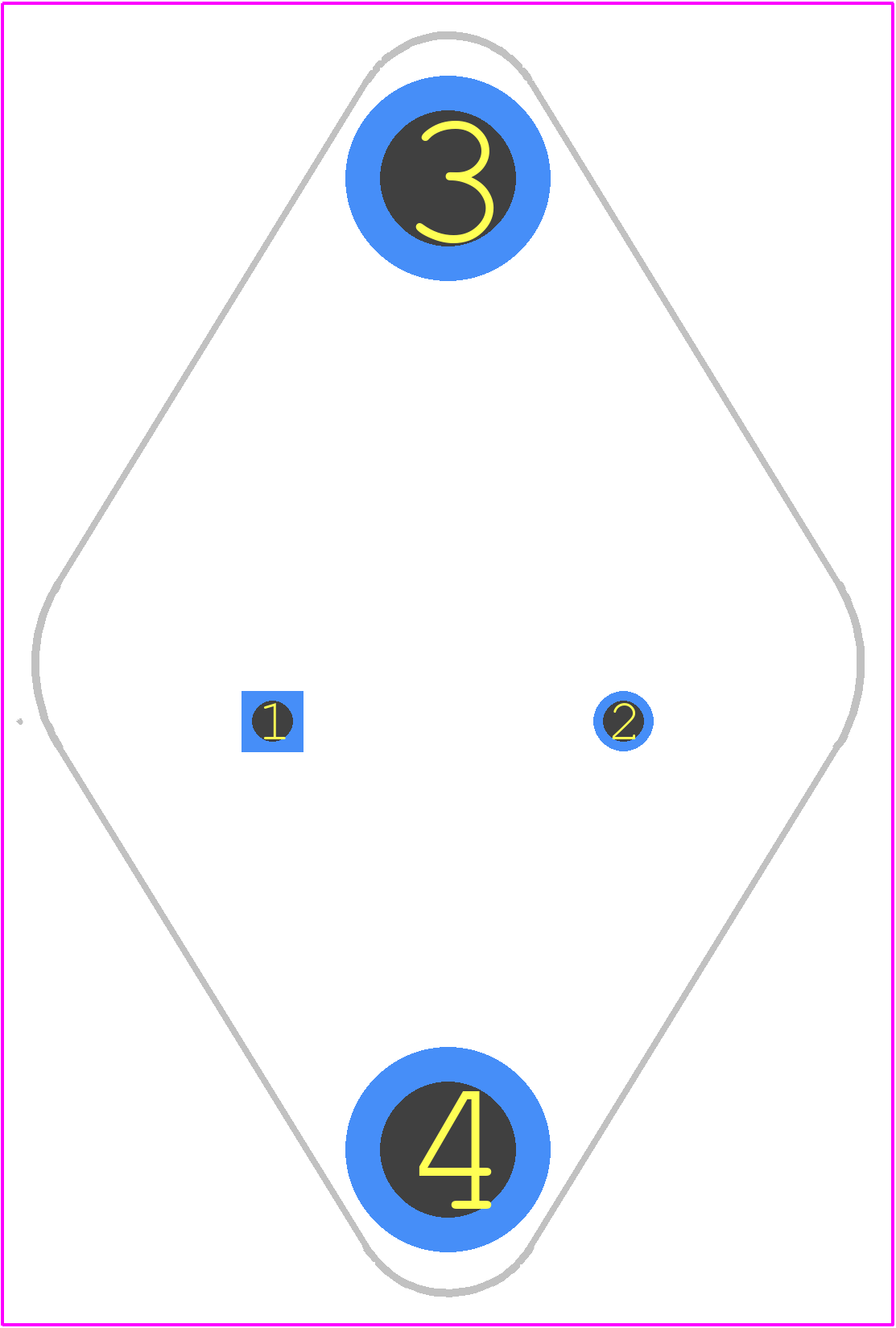

• Part Package Code:

  TO-204AA

• Package Description:

  TO-3

• Pin Count:

  2

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.95

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  10 A

• Collector-Emitter Voltage-Max:

  80 V

• Configuration:

  DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

• DC Current Gain-Min (hFE):

  1000

• JEDEC-95 Code:

  TO-3

• JESD-30 Code:

  O-MBFM-P2

• JESD-609 Code:

  e3

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  200 °C

• Package Body Material:

  METAL

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  245

• Polarity/Channel Type:

  NPN

• Power Dissipation Ambient-Max:

  150 W

• Power Dissipation-Max (Abs):

  150 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  1 MHz

• VCEsat-Max:

  4 V
